2007-2021 Tundra 5.7L/4.6L Transmission Cooler Bracket
$139.00
If You Tow, Or Have Big Tires, You Need This
If your Tundra hauls heavy loads or wears bigger tires, this bracket is a must.
By the time the dash light comes on at 305°, it’s already too late—your fluid is cooked. And a complete drain and fill will cost over $200 in fluid alone.
Simple Fix. Big Difference.

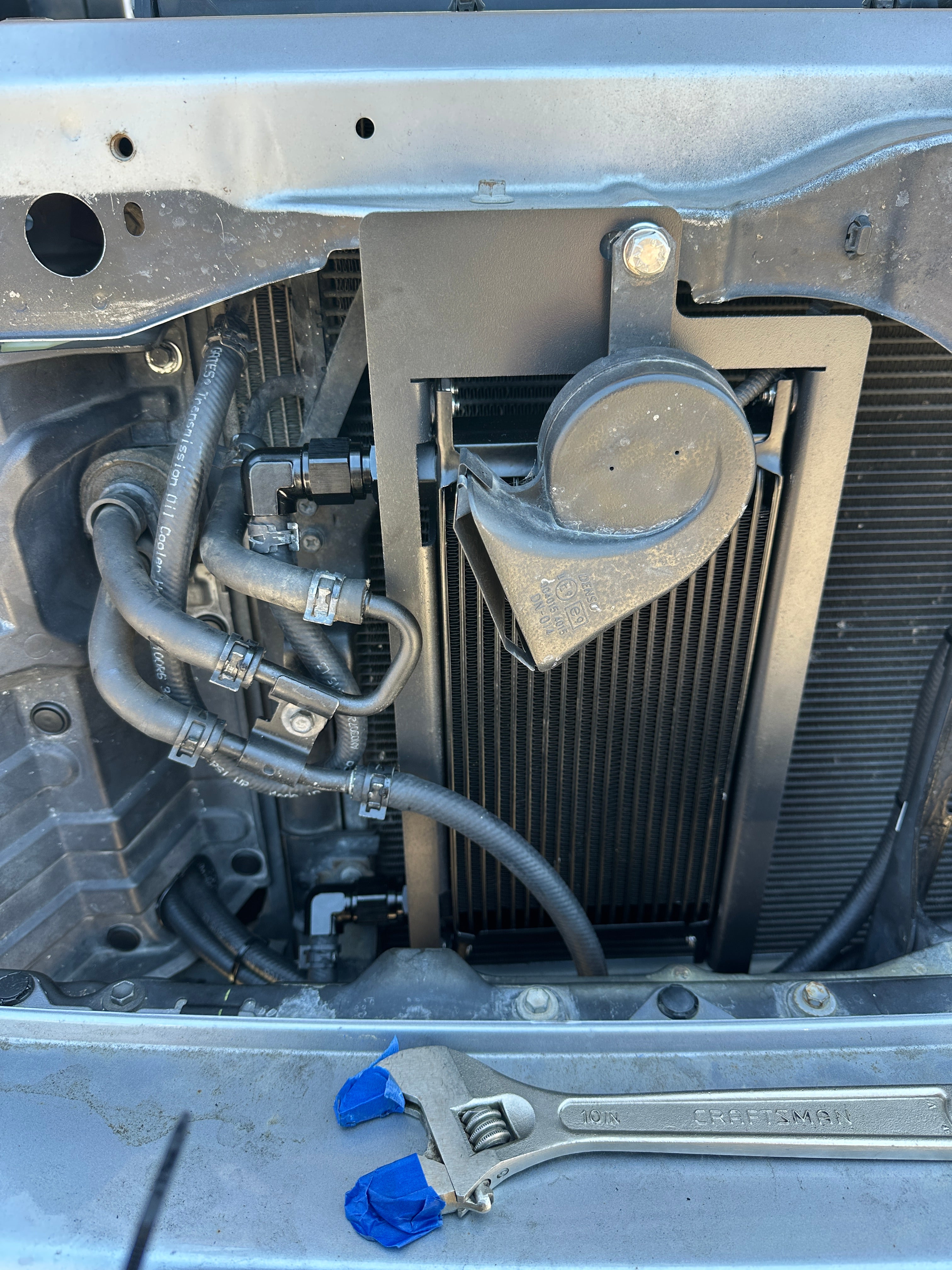

This bracket lets you mount a real external cooler like it should’ve come from the factory.
- Designed for Derale or Setrab coolers
- Slim profile so you’re not blocking airflow
- Uses the factory thermostat (so you won’t run too cold)
Built Like Toyota's Should Be
- Laser cut from 1/8" aluminum
- Professionally powdercoated
- Includes stainless hardware
How It Works With Your Truck

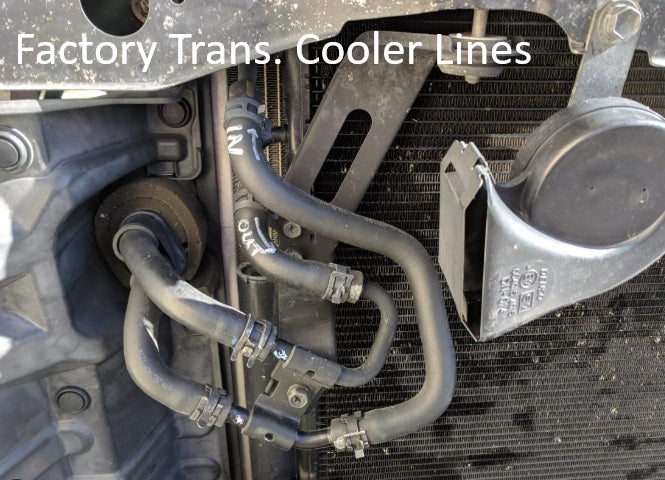

- Double-check your Tundra already has the factory transmission cooler (see pictures)
- You can splice this cooler in series with the factory condenser cooler, or cap off the factory cooler and run just this big one

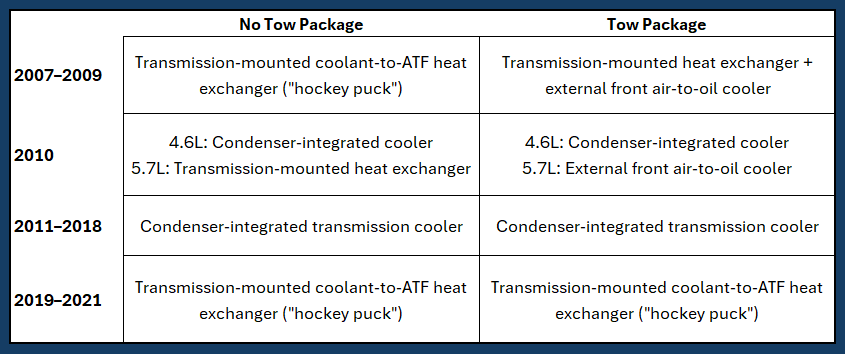

- 2019-2021 trucks don't even have a condenser-cooler meaning this is a huge upgrade for those!
Works With My Other Kits
Pair it with my steering cooler bracket and save $10—because doing it once is smarter than doing it twice.
See separate listing for my install kit: Derale 19-row Install Kit – Full Metal Designs

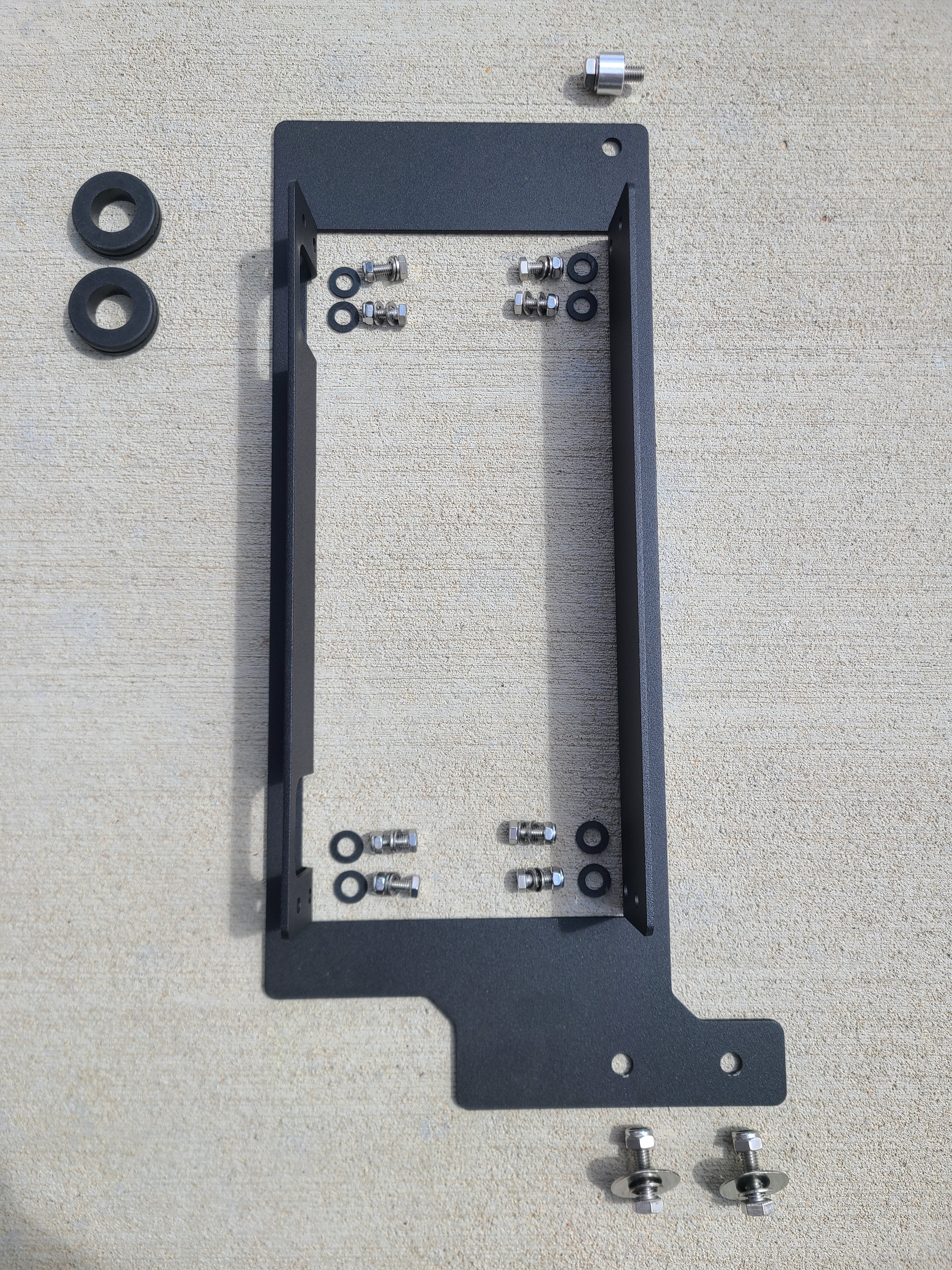

What’s Included
- Powdercoated aluminum mounting bracket
- Stainless hardware (bracket → truck)
- Stainless hardware (cooler → bracket)
- Rubber grommets for hose routing (need to drill 1.25" holes in plastic shield)
Needed to Complete Install
If you already have a factory cooler:
- Derale 19-row cooler or Setrab 50-619-7612
- Derale part numbers: 13403, 51978, 51981
-
(90° barb fittings for 3/8" hose are ideal)
- 3/8" inside diameter automotive hose — 2 ft
- 2 quarts transmission fluid
If you don’t have a factory cooler:
(These parts are for 5.7L trucks only)
- Toyota thermostat — 32970-34030
- Toyota inlet hose — 32941-0C030
- Toyota outlet hose — 32942-0C040
- Toyota cooler pipe (hardline) — 32907-0C020
- Toyota (2) flange bolts — 90080-10400
- Toyota hose clamps — 90466-16004 or 90466-A0014
- Magnefine Filter — Recommended
- 3/8" inside diameter automotive hose — 6 ft
- 2 quarts transmission fluid
(These parts are for 4.6L trucks only)
- Toyota thermostat — 32971-34030
- Toyota inlet hose — 32941-0C040
- Toyota outlet hose — 32942-0C050
Toyota cooler pipe (hardline) — 32907-0C040 - Toyota (2) flange bolts — 90080-10400
- Toyota hose clamps — 90466-16004 or 90466-A0014
- Magnefine Filter — Recommended
- 3/8" inside diameter automotive hose — 6 ft
- 2 quarts transmission fluid
