2000-2006 Tundra Skid Plate Manufacturing Drawings

$200.00

Build it. Beat it. Repeat.

For Fabricators, 4x4 Shops, or That Guy Who “Knows a Guy”

Stop paying full price for armor that barely scratches the trails. With these digital files, you can fab your own heavy-duty skid plates at your local shop for around $350 or less.

No shipping fees, no long lead times—cut, bend, and weld when you want
You are paying $300+ in shipping fees with traditional manufacturers whether you realize it or not!
Swap skids every wheeling season, or drop lighter ones for daily driving

Built to Take a Beating

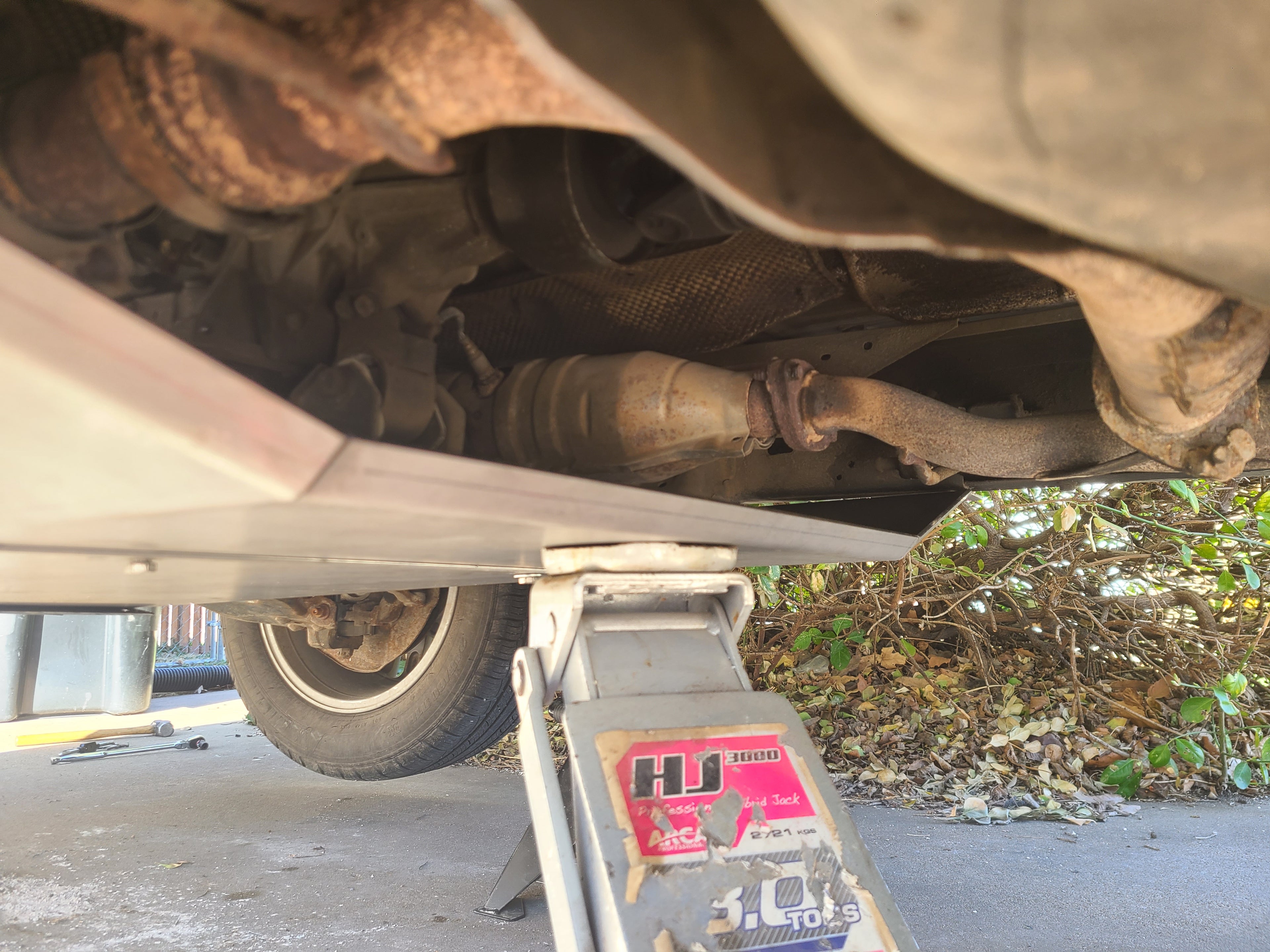

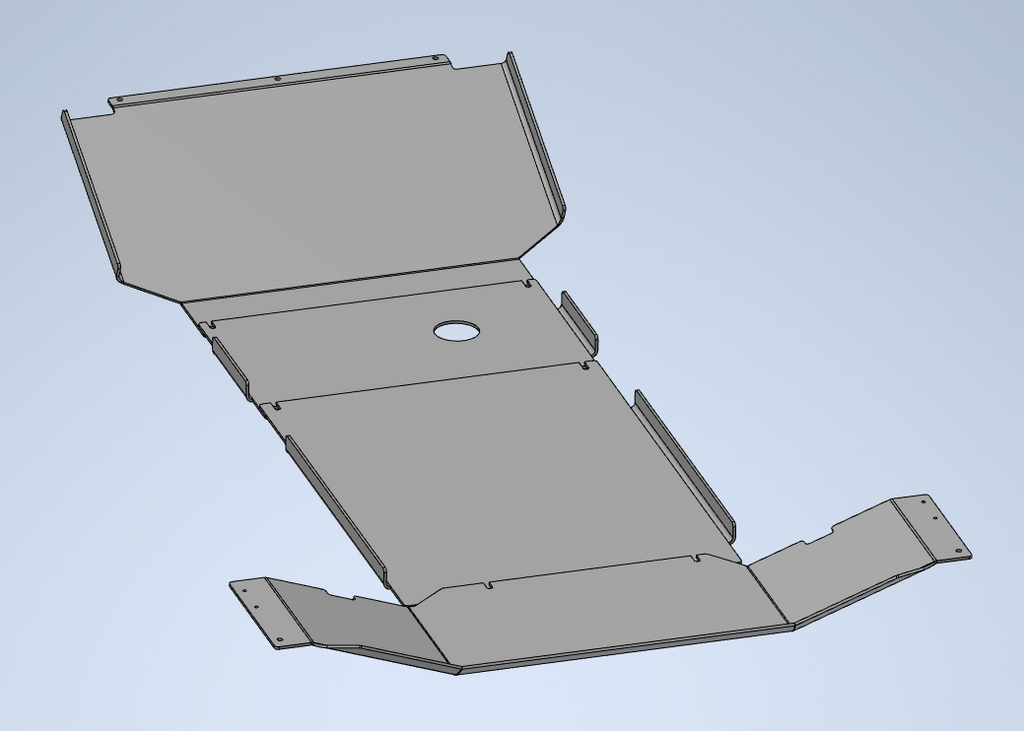

Bent or flat patterns—build with 1/8" AR400 or whatever metal you like
Originally designed for 3/16" steel, but aluminum or stainless works too

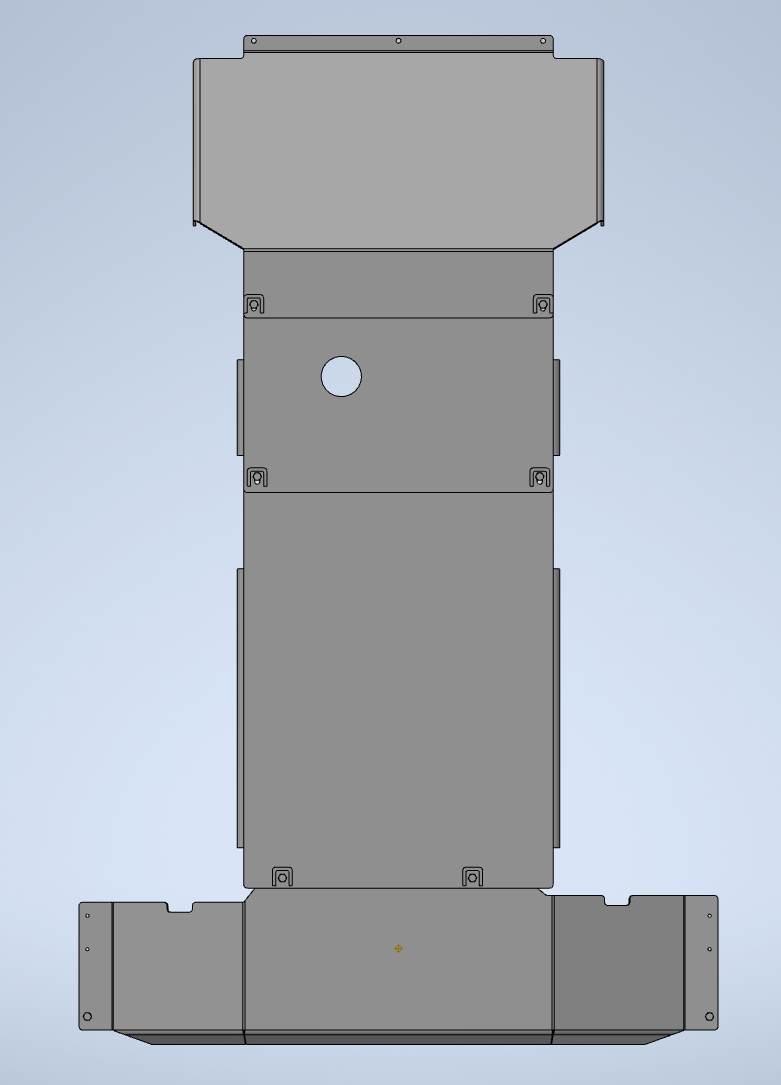

Biggest pieces: 48.7"x13.1" and 31"x26.1"—fits almost any table

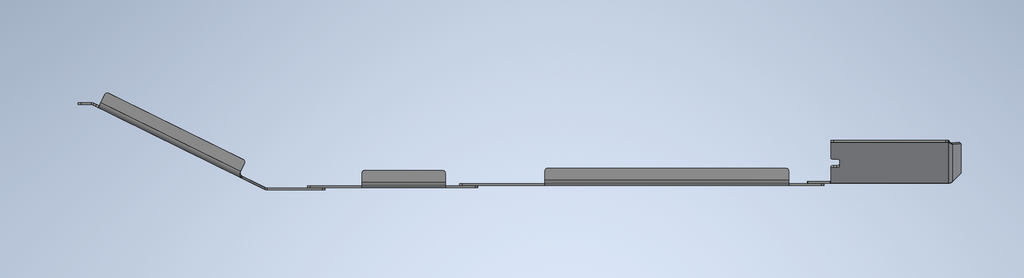

Bent patterns require a press brake at least 23" long
Weld-on bolt head protector rings included
Only two 1" welds optional (on bent pattern) but feel free to add extra gussets
Weight: 125 lbs (3/16") or 90 lbs (10ga)

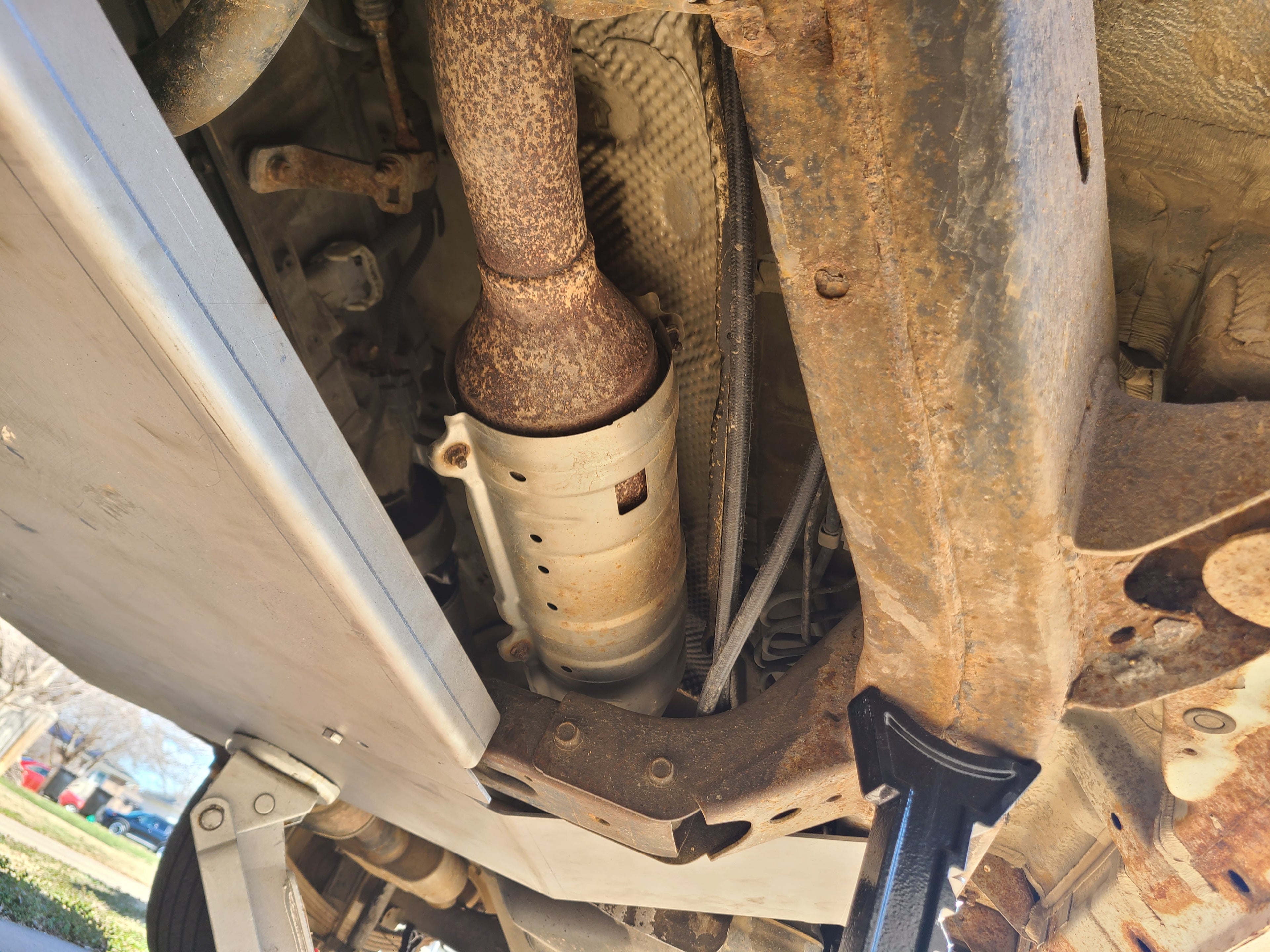

Cats protected from theft
Front skid wide enough to shield low-hanging radiator
Engine oil drain hole included

(Will not fit V6 Tundras. Sequoia fitment unconfirmed—2000-2004 models need recessed rear skid pocket.)

What You’ll Need

Steel or aluminum sheet, 25 sq.ft.
(9) M8-1.25x35mm bolts + washers + (2) nuts (supplied by you)
(2) 3/8-16x1.5" bolts (or M8-1.25x90mm), washers, nuts, 1.5" fender washers (supplied by you)
(4) #14x1" self-tapping screws (optional for extra rear skid strength)
(2) aluminum spacers for 3/8" bolts x 5/8" tall (for 4WD models)

Requires match-drilling: (2) 3/8" holes in the frame rails and (2) in the rear crossmember.

Included With Download

PDF + DWG sheet metal bend drawings
Individual 2D DXF files for CNC laser/plasma cutting

Cut as many as you want, just don’t sell or redistribute these files.

Optional: Shop Coordination

Want an exact fab quote? I’ll coordinate with your local shop and send a finalized quote before you commit.

Also available shipped via SendCutSend:

2000-2006 Tundra Skid Plates Shipped via SendCutSend – Full Metal Designs
