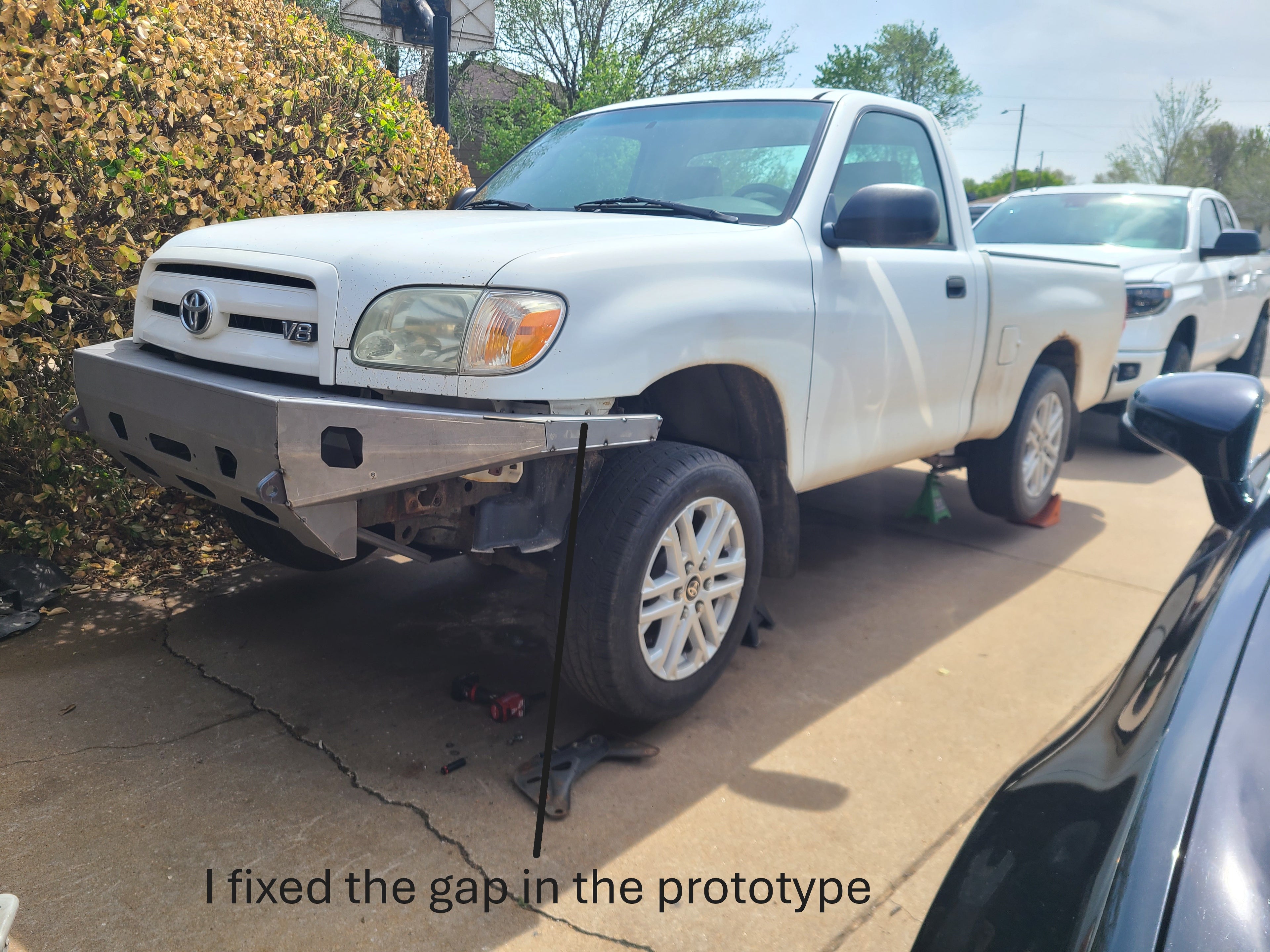

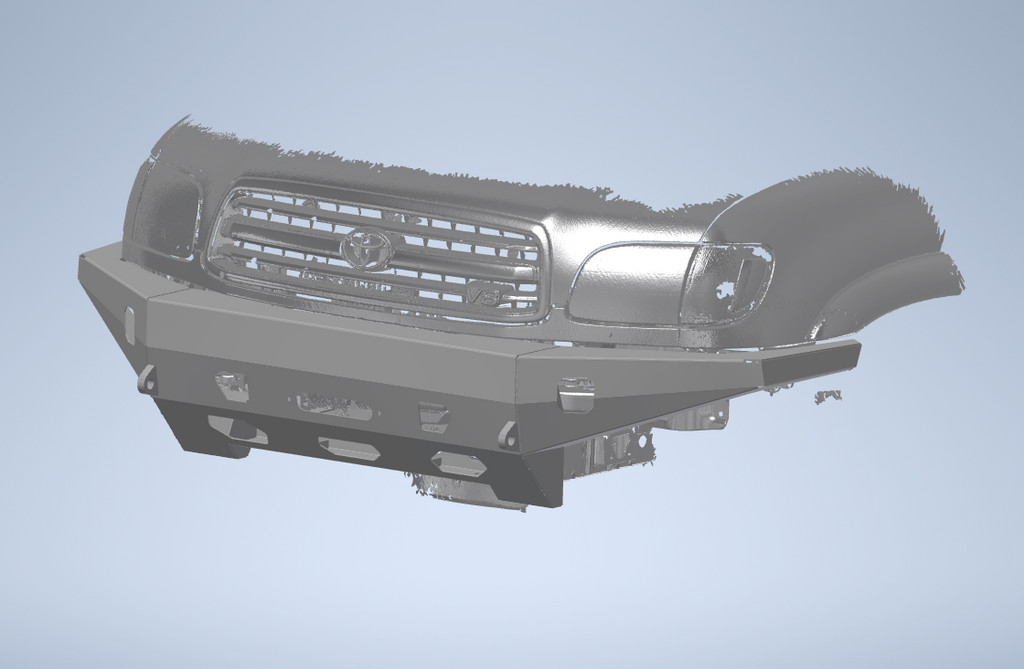

2000-2006 Tundra Front Bumper Manufacturing Drawings

Build it. Beat it. Repeat.

Perfect for Fabricators, 4x4 Shops, or That Guy Who “Knows a Guy”

Start your own side hustle—or just save a ton of money—by fabricating your own bumper.

• Digital files ready for CNC laser or plasma cutting
• Local fab shop should run around $500 or less for ready-to-weld metal
• With these files, you can swap bumpers every wheeling season if you want
• No shipping bill that makes you question your life choices. You are paying $300+ in shipping fees with traditional manufacturers whether you realize it or not!
• No crate showing up beat to hell.
• No waiting 6–10 weeks while your truck just sits there judging you

Built to Work Your Way

• Available bent or flat—no press brake? No problem
• Designed for 10ga steel, but aluminum or stainless of any thickness works
• Flat sheet option works great with 1/8" AR400 for possibly the highest strength-to-weight ratio bumper out there!
• Frame mount plates: 0.270" thick
• Shackle mounts: 3/4" thick, extend through the bumper (Coastal Offroad has only 3/8" thick mounts)

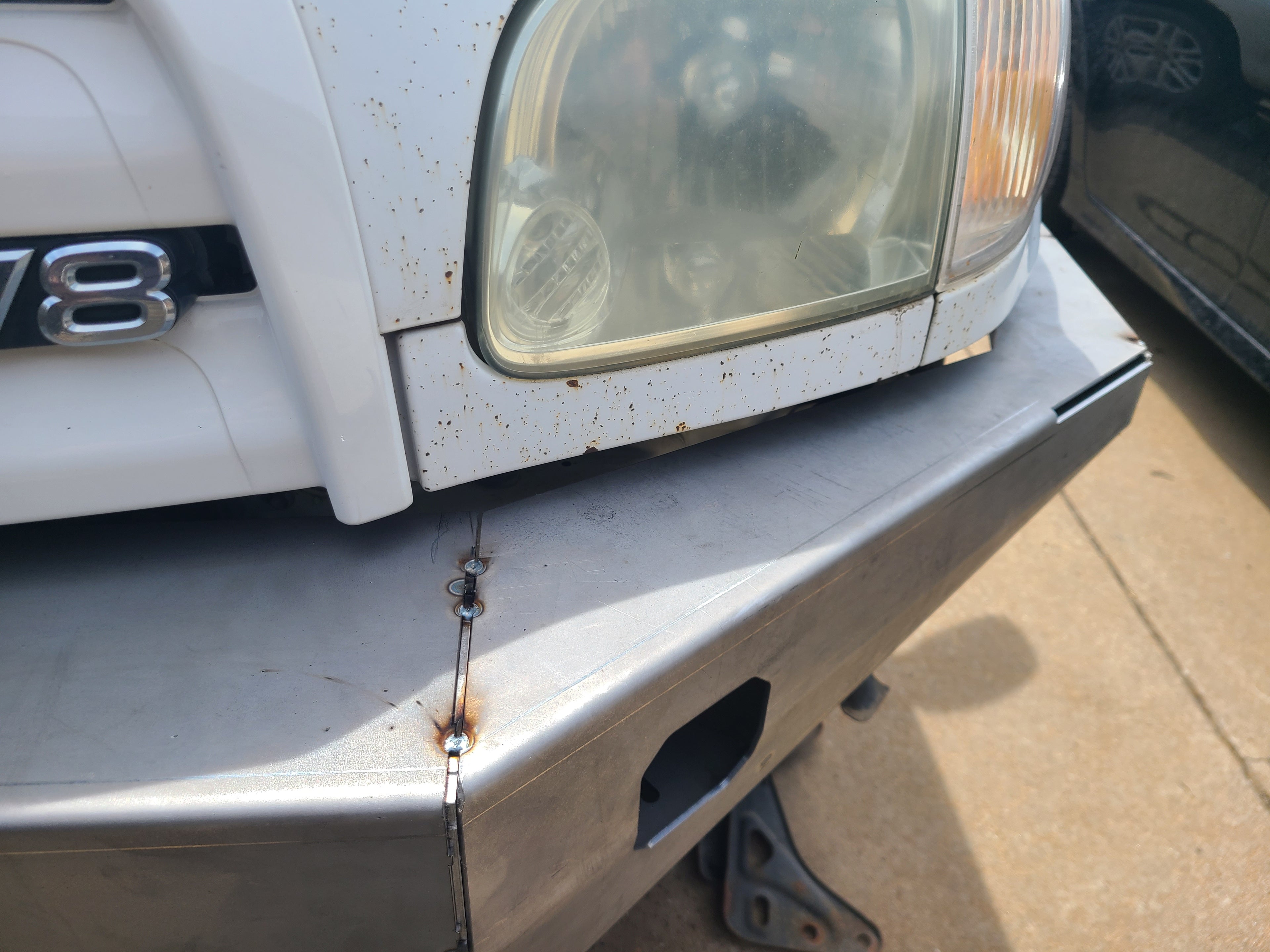

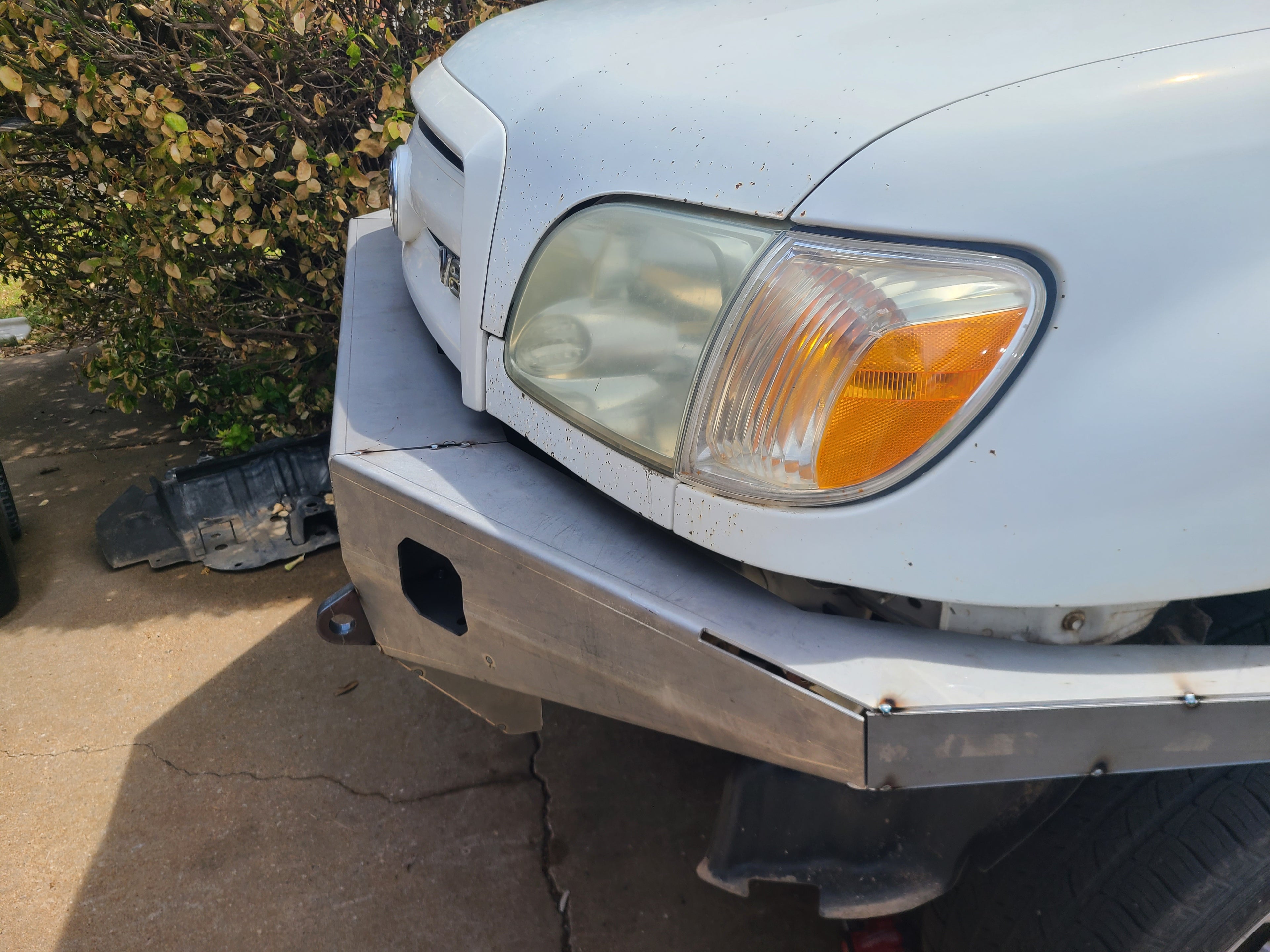

• Everything is tabbed for perfect alignment

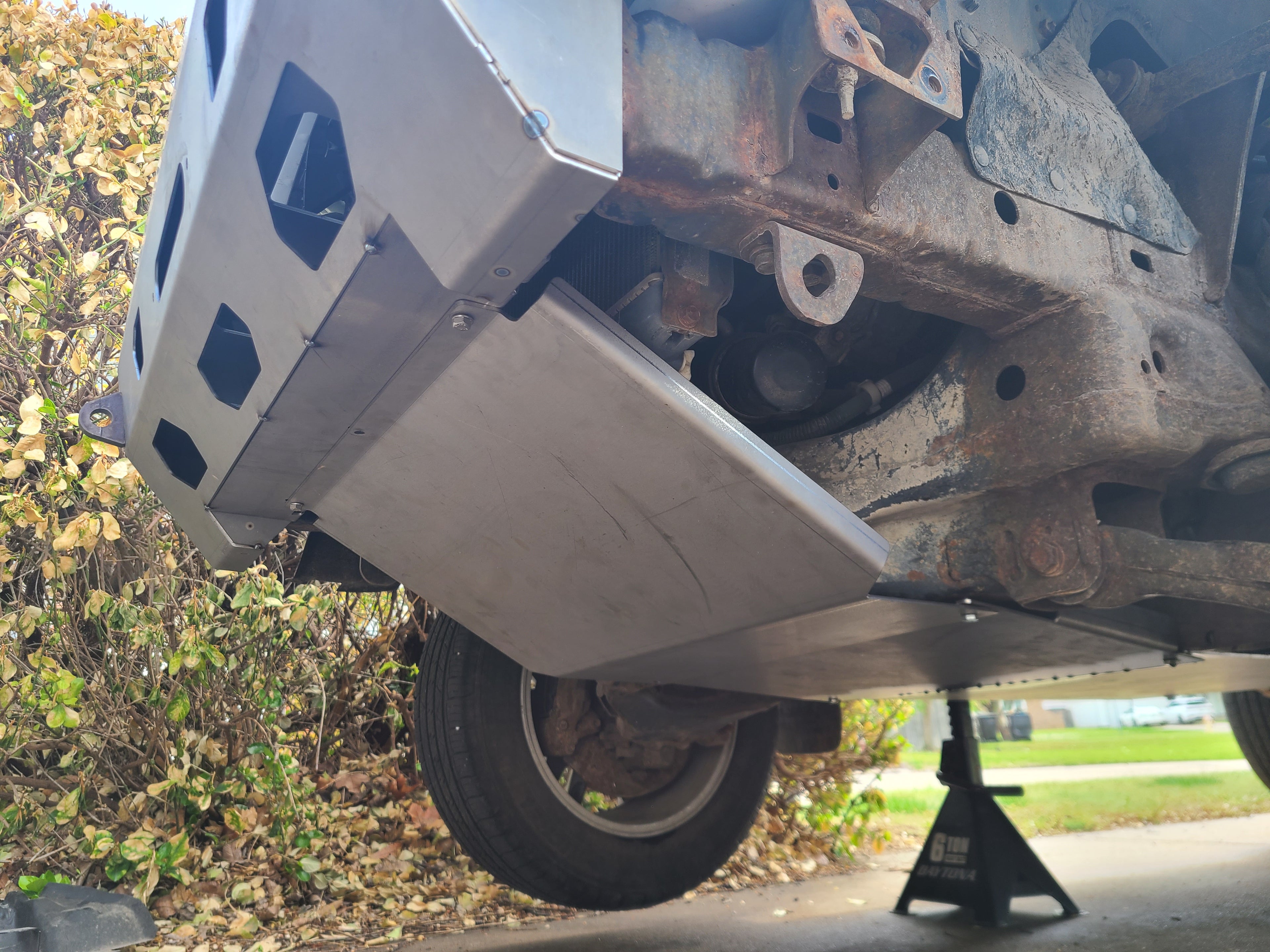

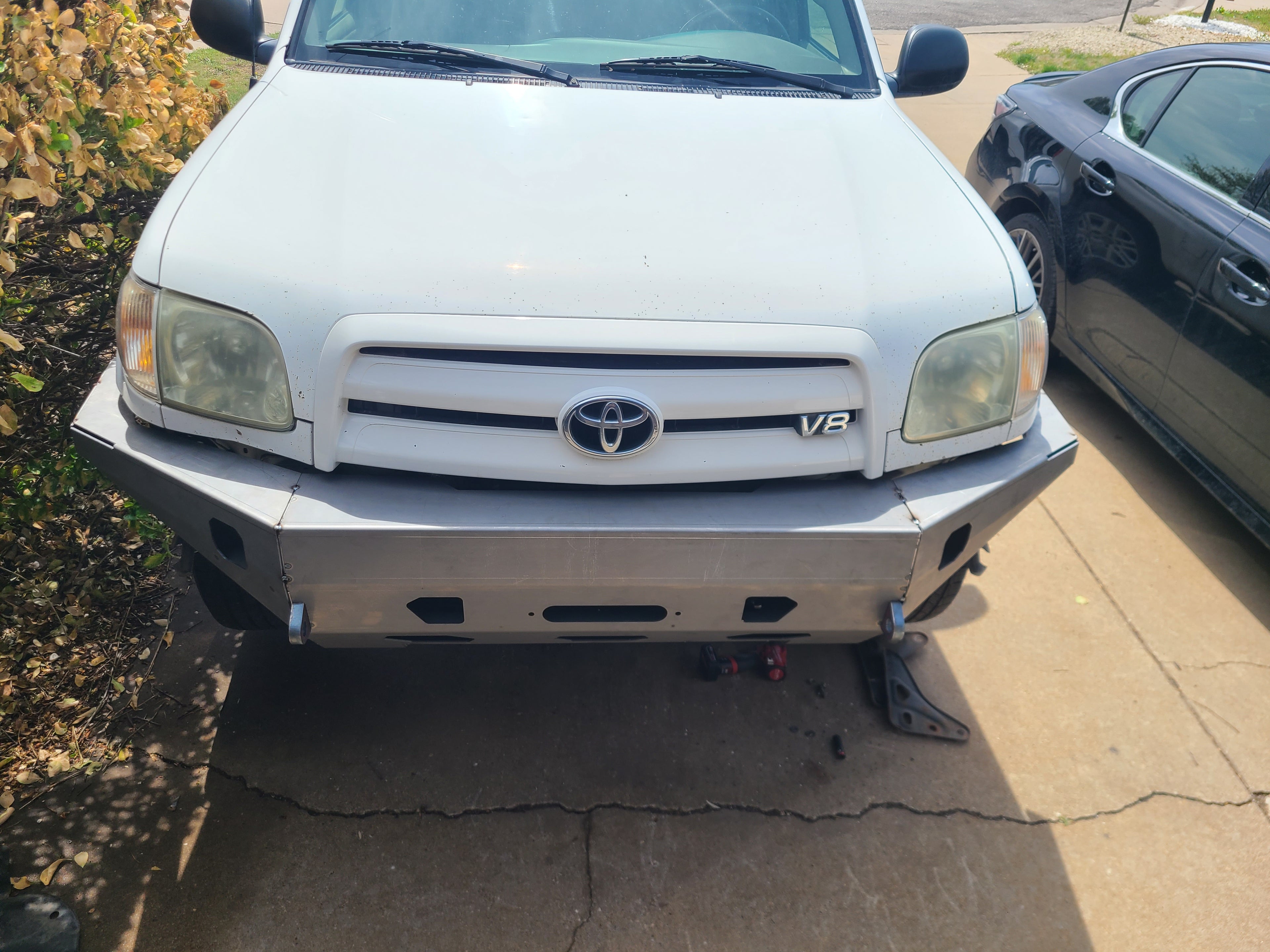

• Mounts the factory front skid plate in stock location
• Designed for Diode Dynamics SS3 pods

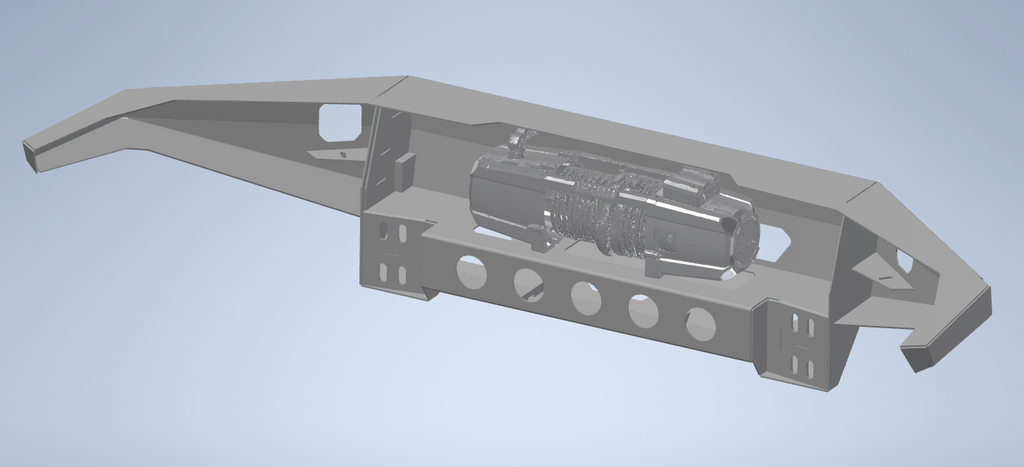

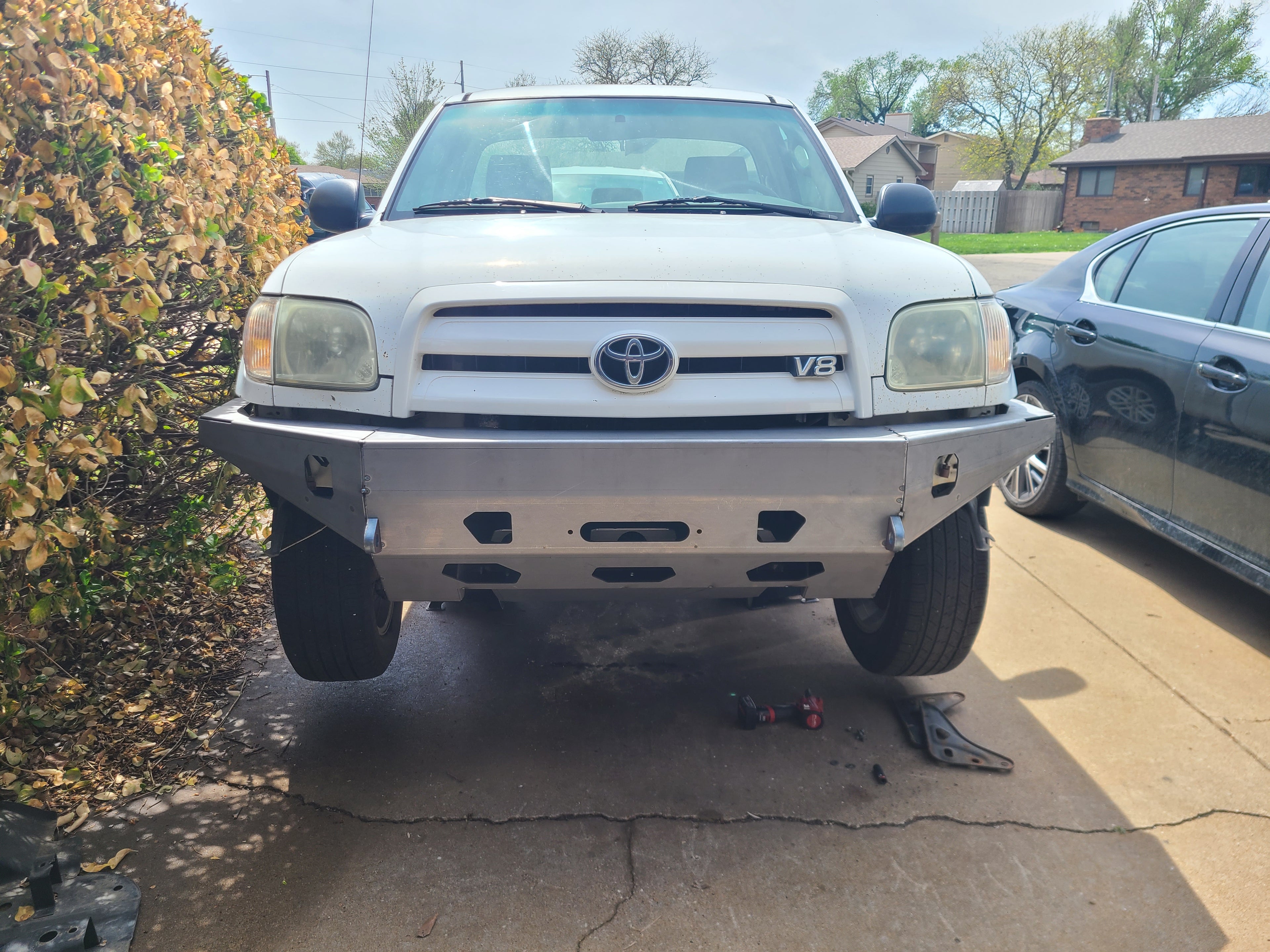

• Fits Badlands and Warn winches
• Weighs just 94 lbs (Coastal Offroad is 120lbs and Brute Force is 140lbs)
• Easily customized with logos, cutouts, or extra light mounts before cutting

Shop-Friendly Specs

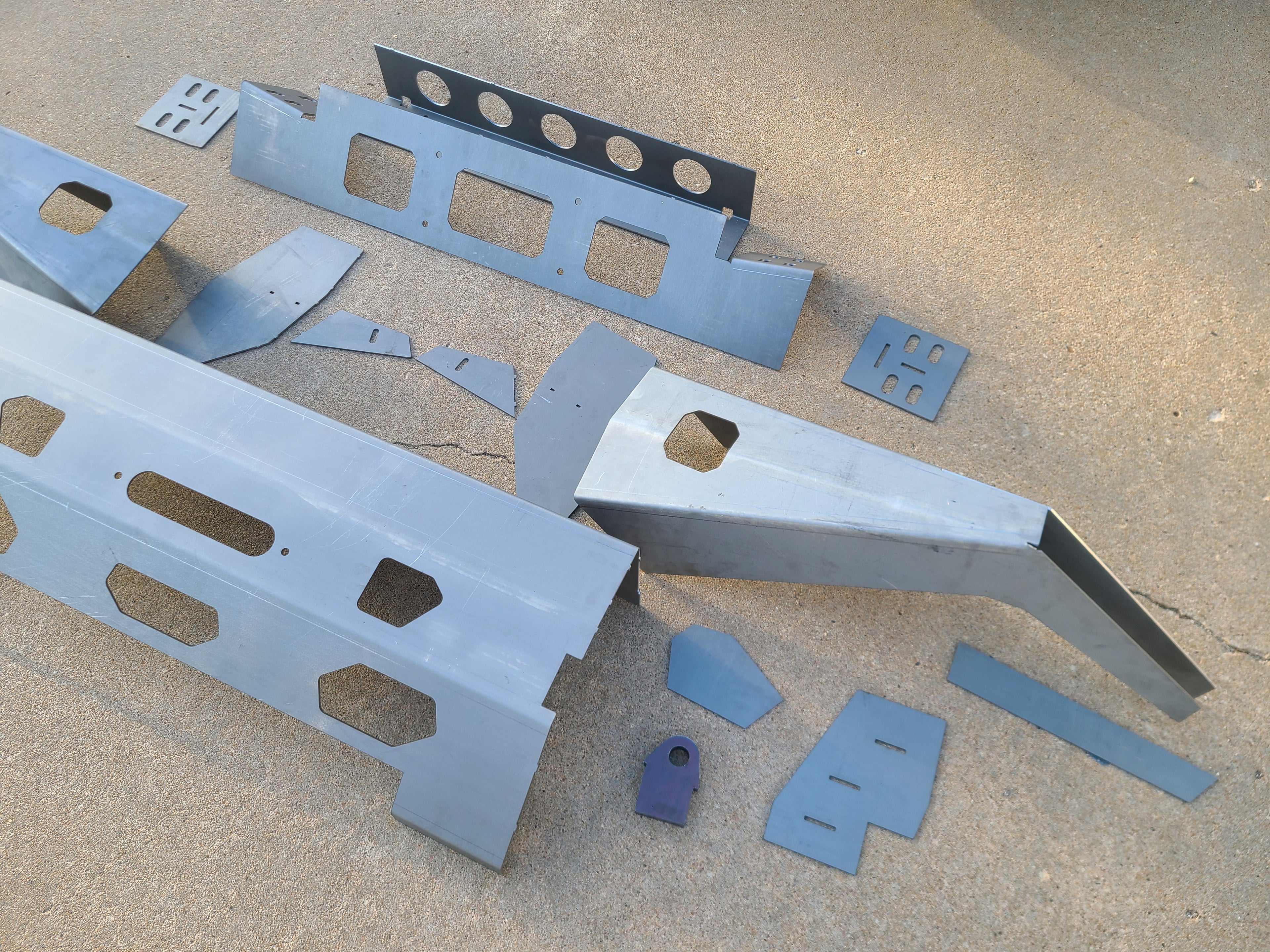

• Biggest cut pieces: 41"x25" and 37"x18"—fits most tables
• Bent patterns require a press brake at least 41" long

• Laser recommended over plasma for tabs, slots, and less cleanup

Material List

• 10ga steel sheet, 15 sq.ft.
• 3/4" steel sheet, 0.5 sq.ft.

Included With Your Download

• PDF sheet metal bend drawings
• Individual 2D DXF files for CNC laser/plasma cutting

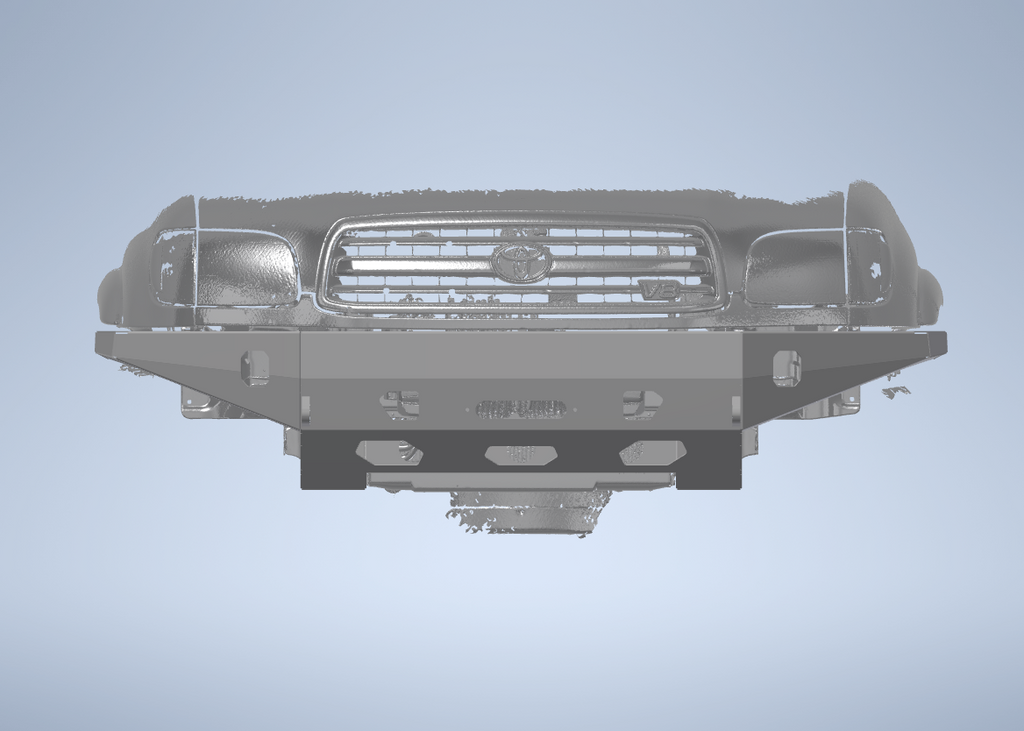

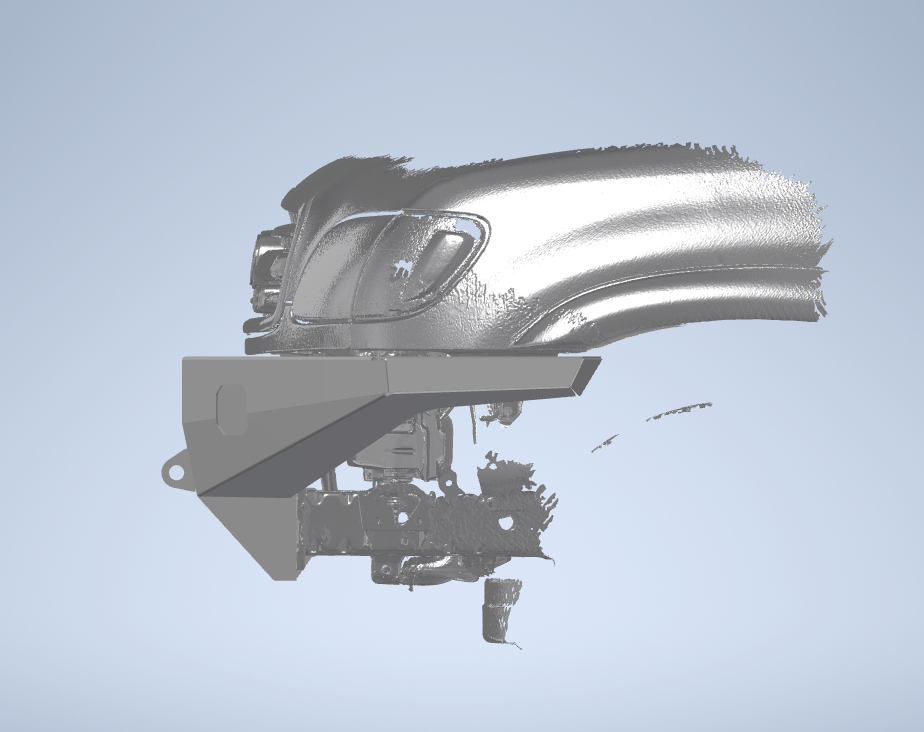

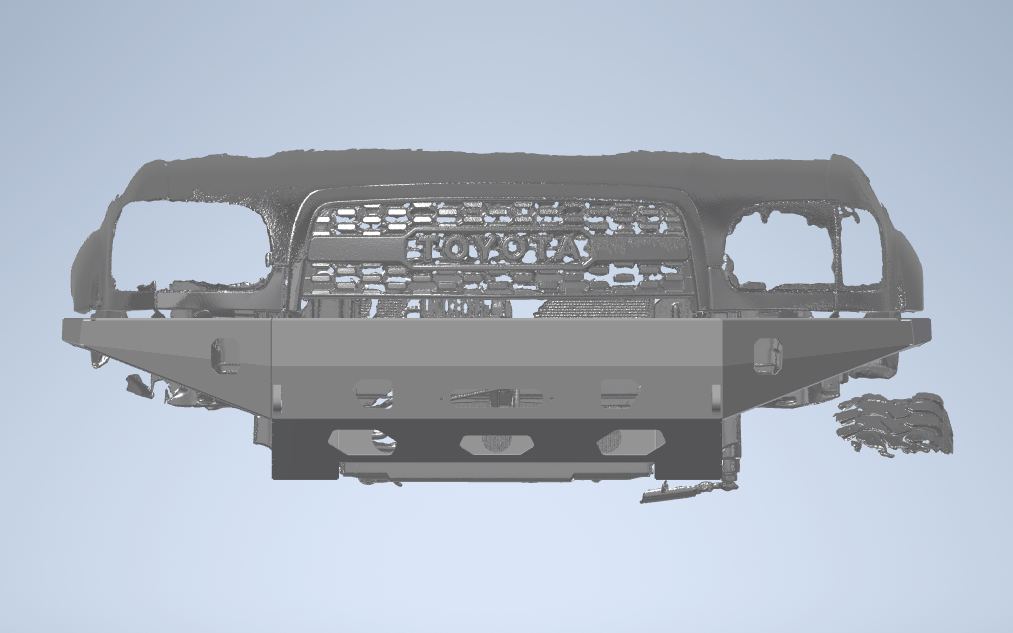

• 3D STEP file showing part fitup

Cut as many as you want, just don’t redistribute or sell the files.

Optional Shop Coordination

Want a precise quote from your local fab shop? I’ll coordinate directly with them and send a finalized quote before you commit.
