2007-2021 Tundra Front Bumper Manufacturing Drawings

Perfect for fabricators, 4x4 shops, or those that 'know a guy'!

Digital product that includes all cut files and bend drawings to have fabricated at your local shop with CNC laser/plasma and sheet metal bending capability for around $400 or less!

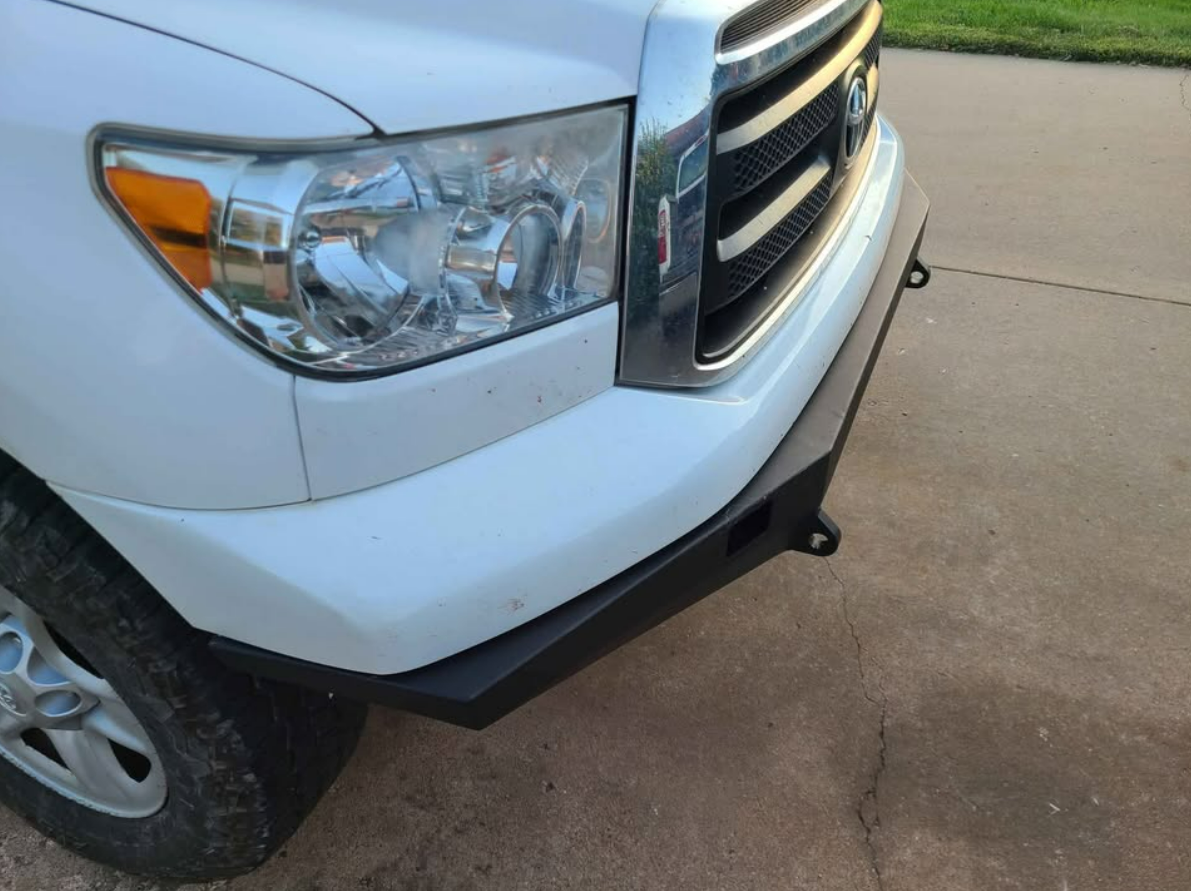

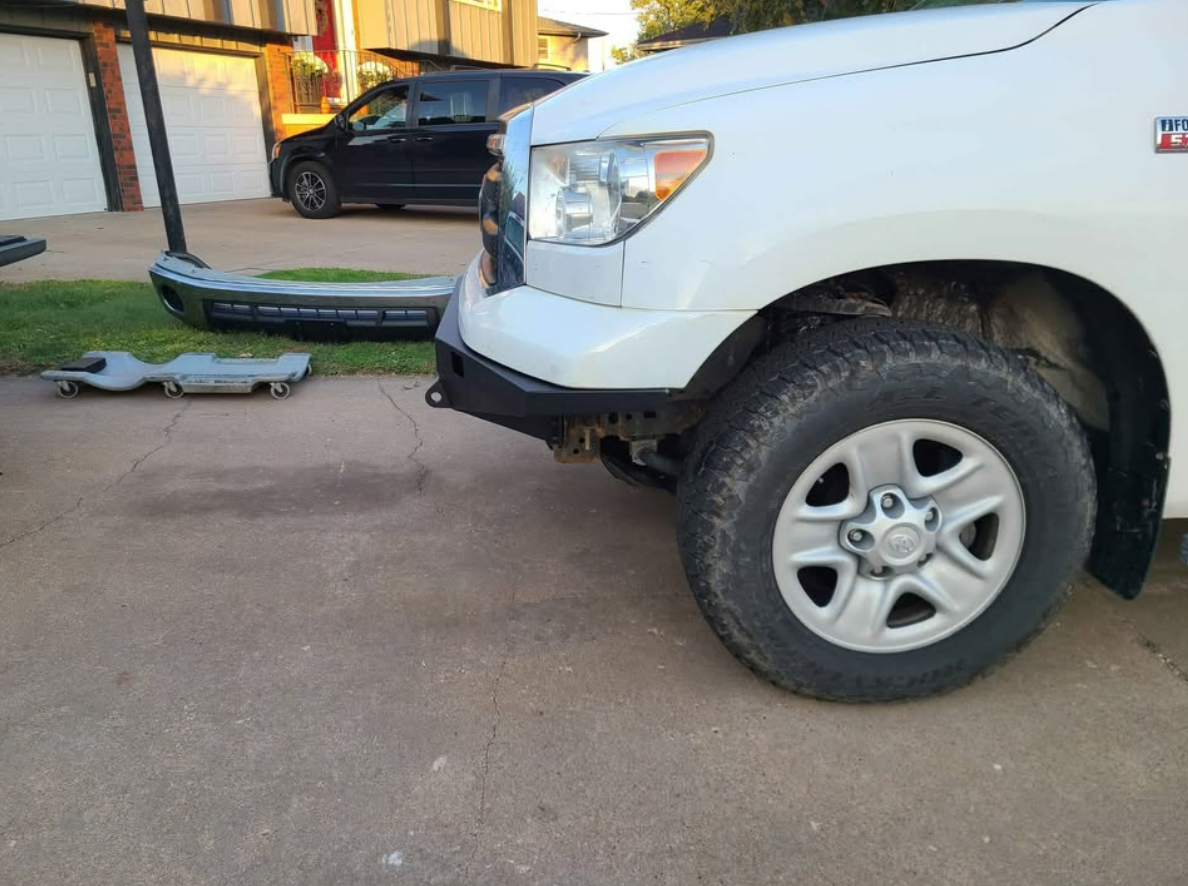

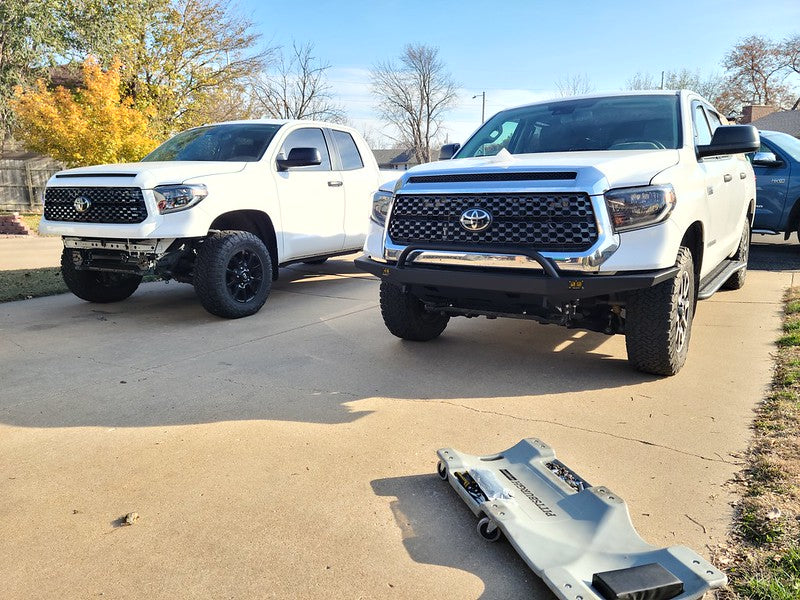

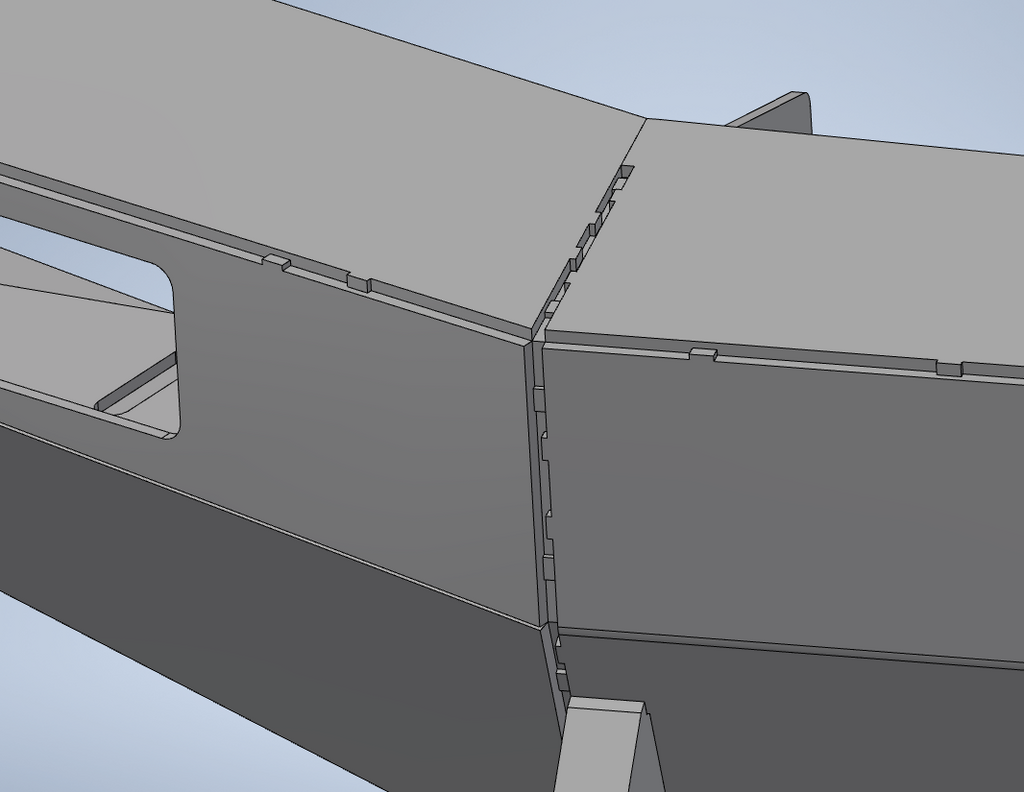

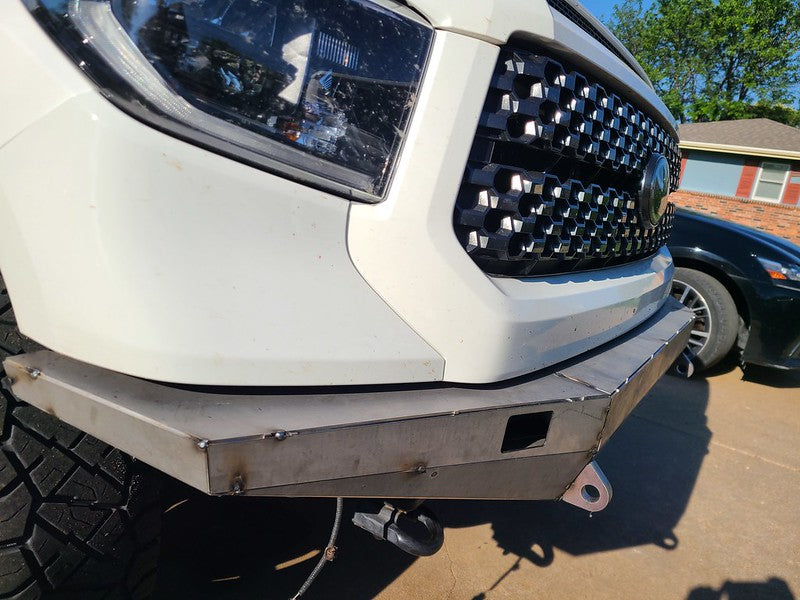

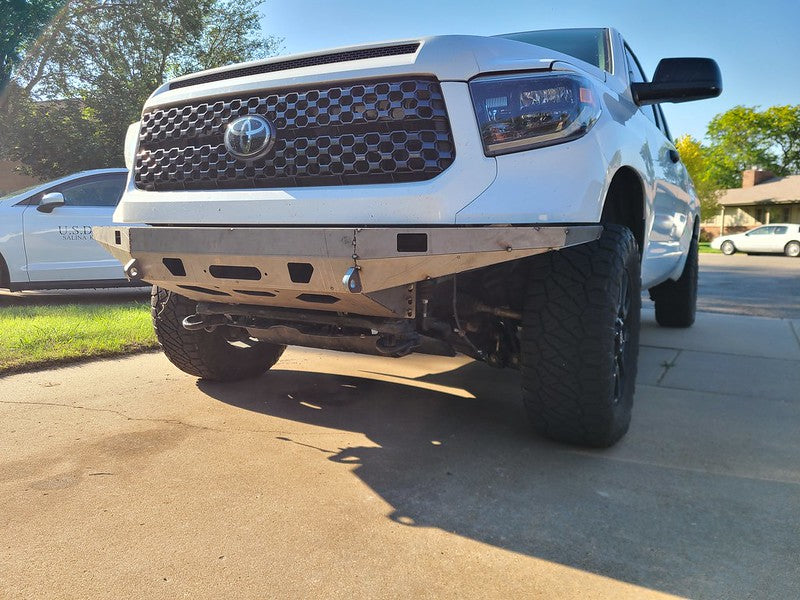

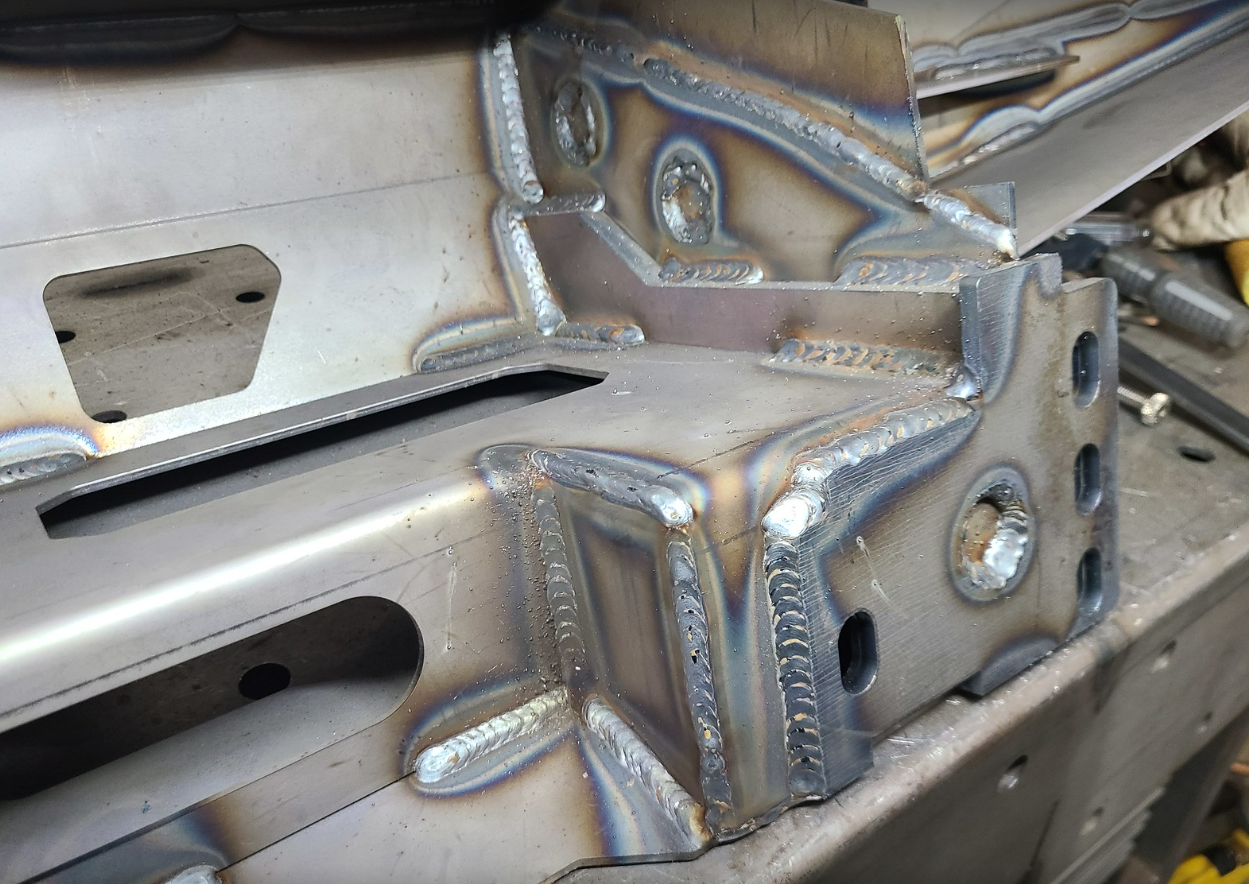

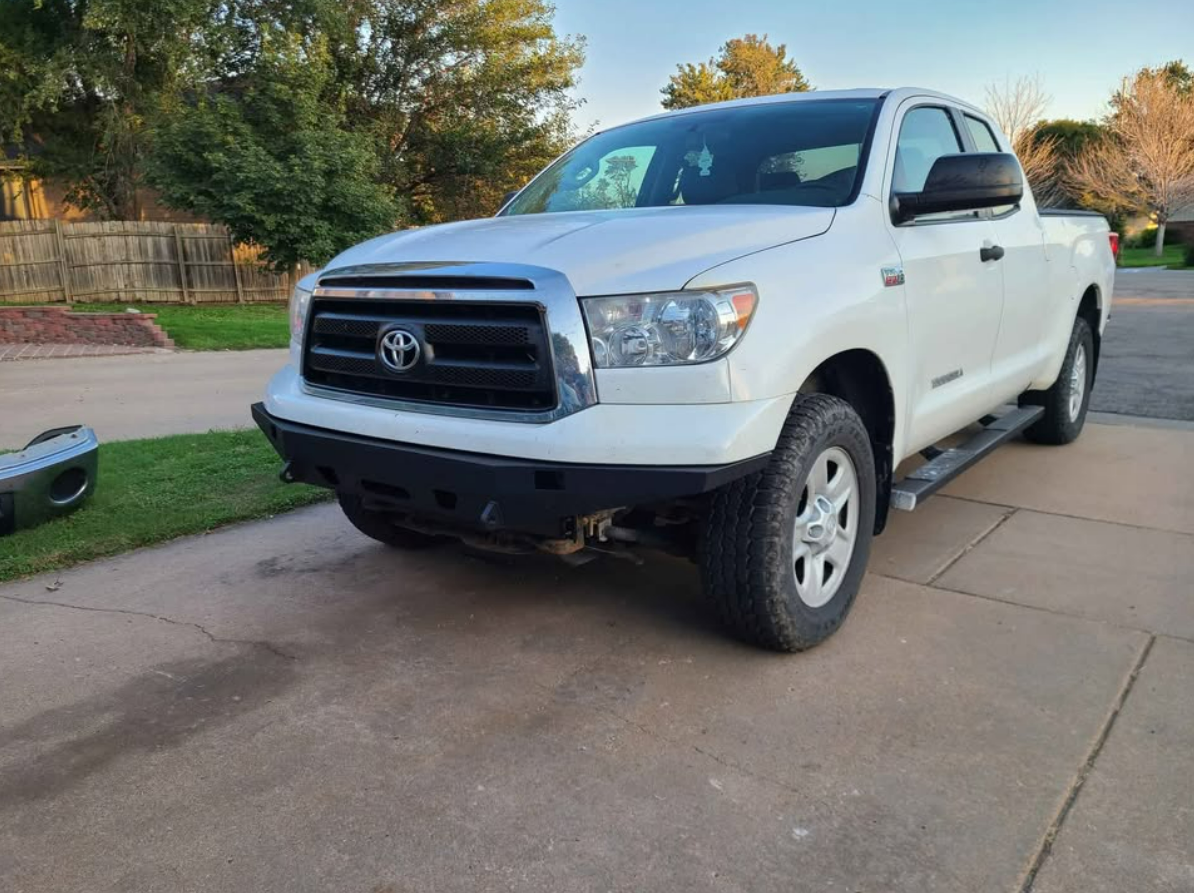

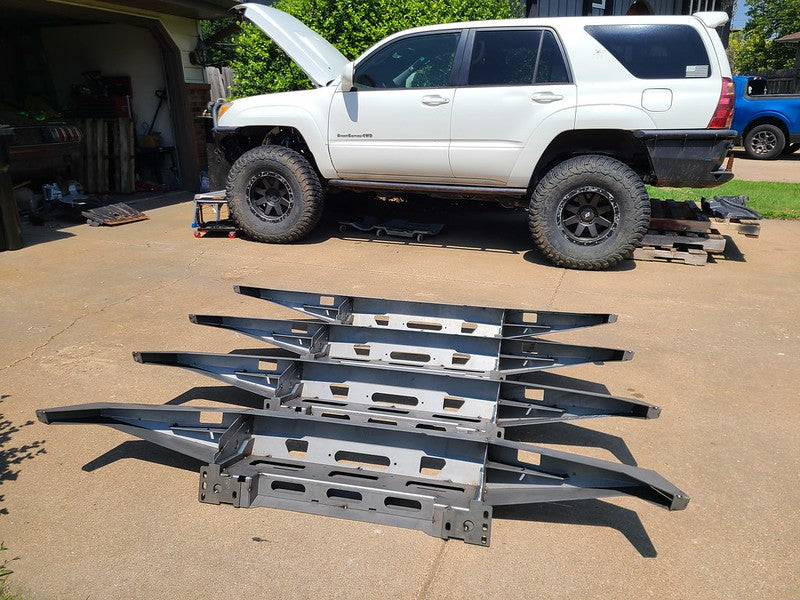

Fits 2007-2021 Toyota Tundra. I'm an engineer and I designed and had laser cut and press broke at a local shop to test fitment. Own a bumper not made in China. No shipping costs or long lead times to deal with. I've successfully tack-welded 4 of these bumpers on the workbench, and they fit perfectly on the truck, no need to tack-weld them on the truck itself. Everything is tabbed for perfect alignment.

• 10ga steel construction
• Main supports are 1/4" thick
• Frame mount plates are 3/8" thick

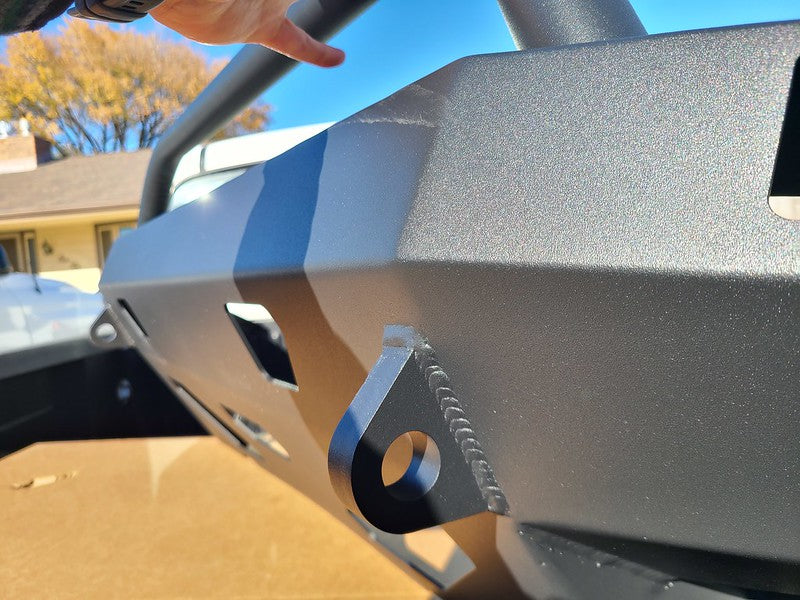

• 3/4" thick shackle mounts that extend through the entire bumper
• Weighs only 85lbs, stock bumper weighs 53lbs. No need to upgrade shocks
• Way lighter than anything else on the market
• Compatible with Badland 12k winch and Warn VR EVO series winch after relocating solenoid into engine bay. Other winches should work but these are the only two I've checked

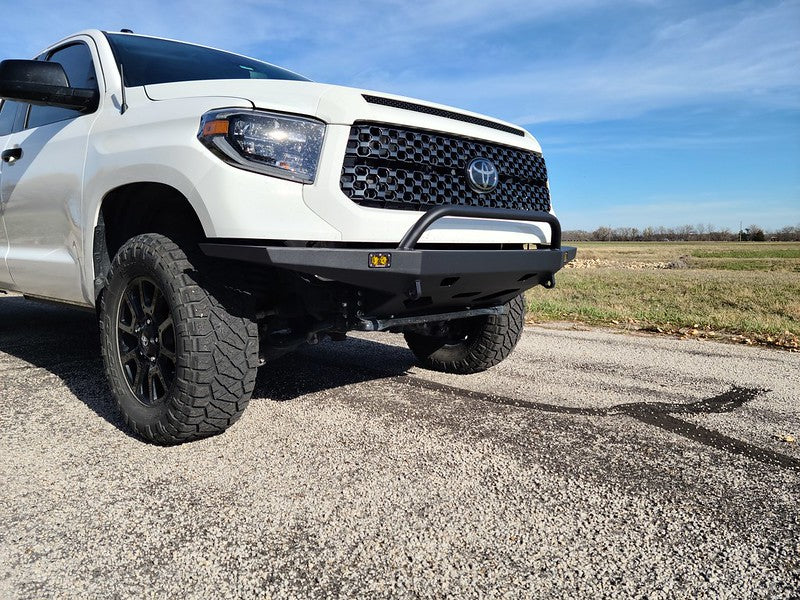

• Compatible with aftermarket lights such as Baja Designs S2, Diode Dynamics SSC2, or similar half-height lights. Light holes are 3.2" wide x 2" tall and mounts are slotted
• If your bumper has front parking sensors you'll need to drill or modify files to add extra holes to mount them (should be 7/8" diameter)
• No need to relocate power steering cooler unlike other bumpers
• Slotted mounting to account for up to 1/2" body lift
• Bumper files have a single center tube 'hoop' drawing included
• 2007-2013 Rock Warrior or Limited trim trucks will need to cut their plastic bumper and retain the upper half
• Longest sheet metal piece is 40" long so should work on virtually every size table
• 3D scan of truck is not included and not available to purchase

Material List:

10 gauge steel sheet, 18 sq.ft.

1/4" steel sheet, 0.5 sq.ft.

3/4" steel sheet, 0.5 sq.ft.

1.75" diameter .120" wall tube, 48" (optional hoop)

Included With Download Link:

PDF and DWG sheet metal bend drawing w/ tube bend drawing included

Individual 2D DXF files for CNC laser/plasma cutting

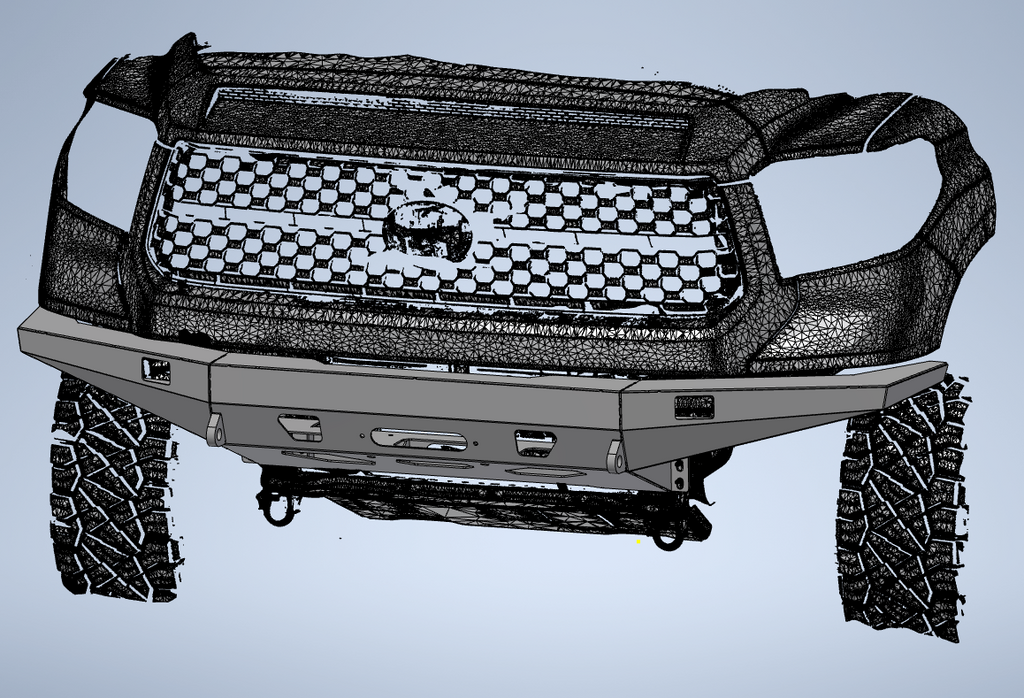

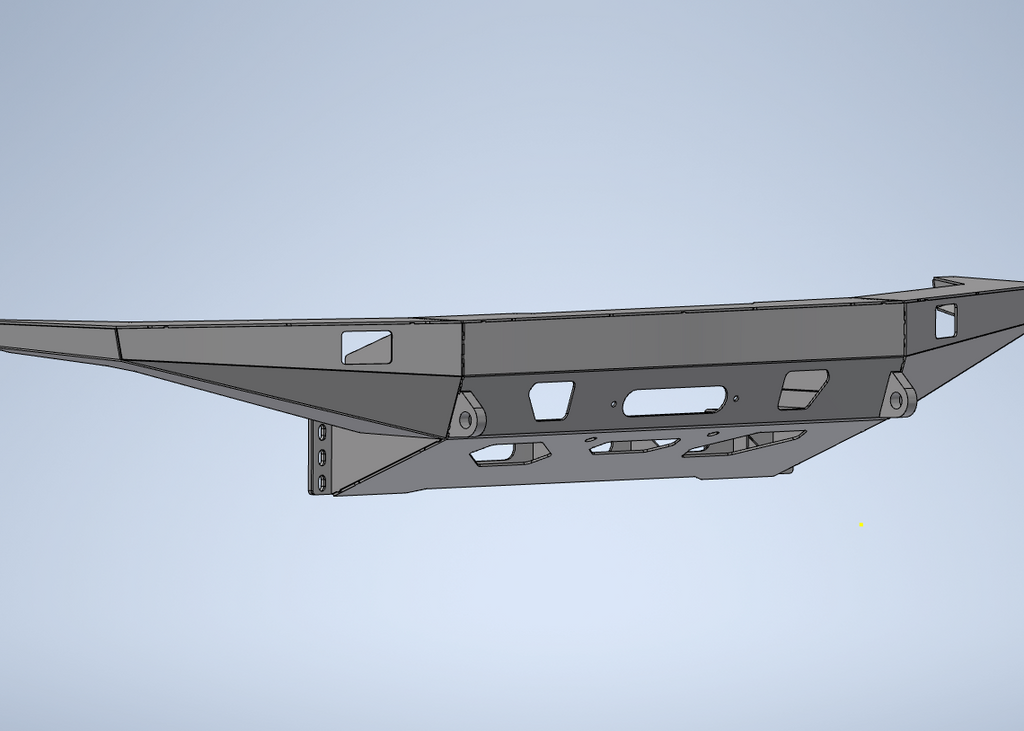

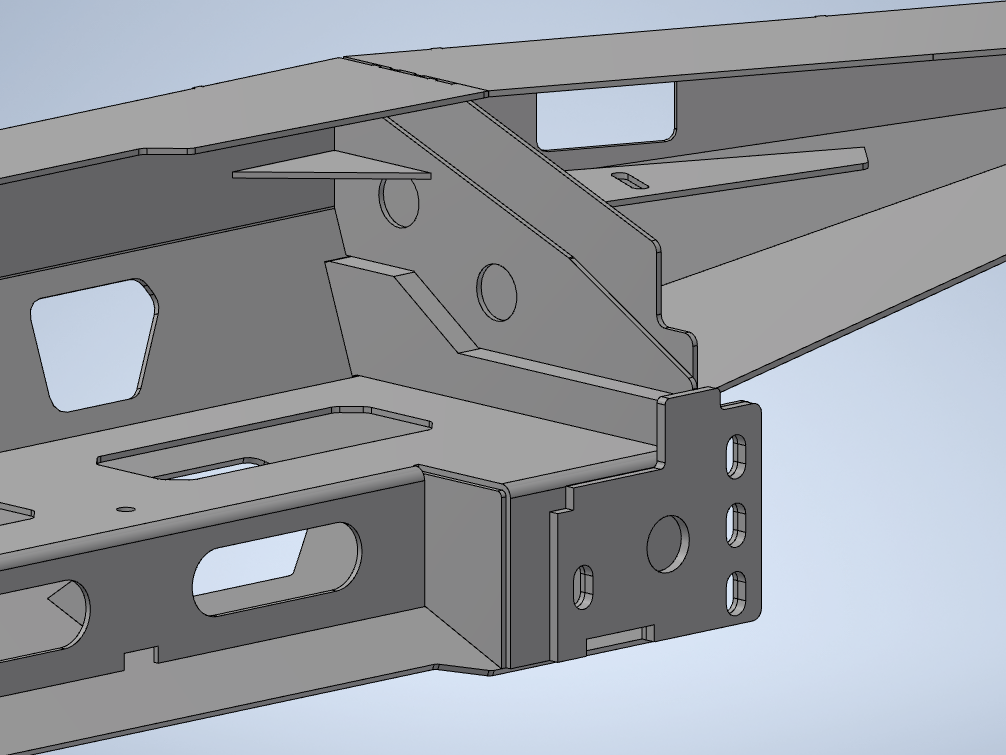

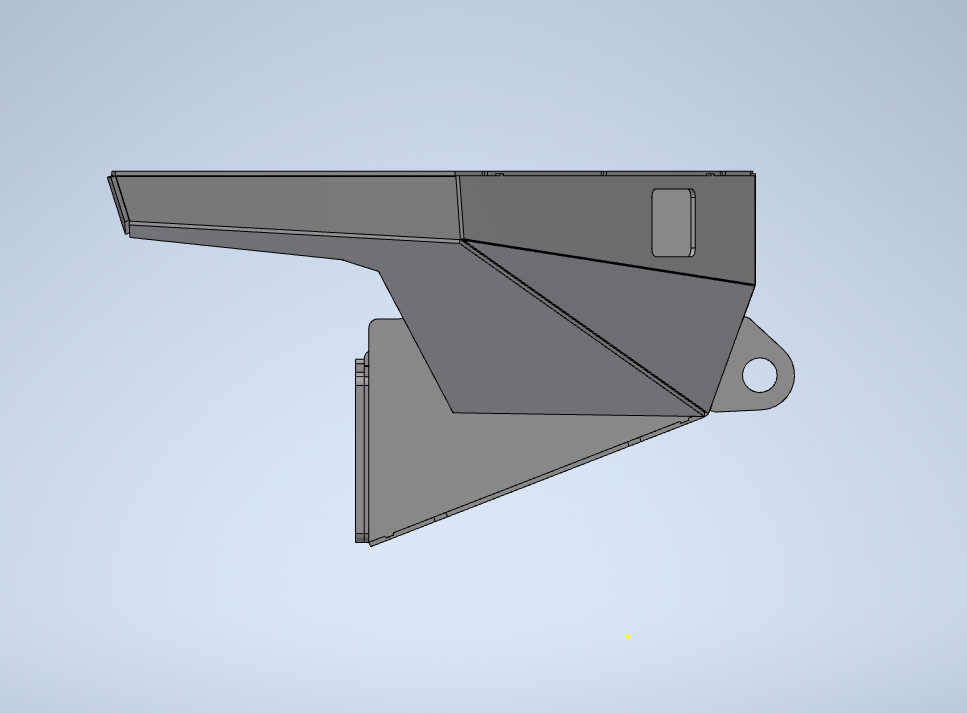

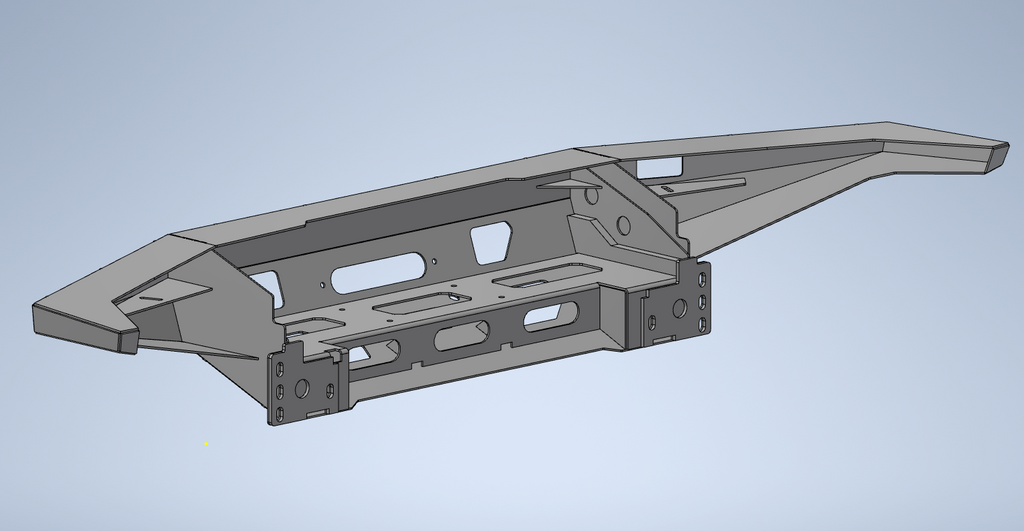

3D STEP file showing fitup of parts

Please don't distribute these files
