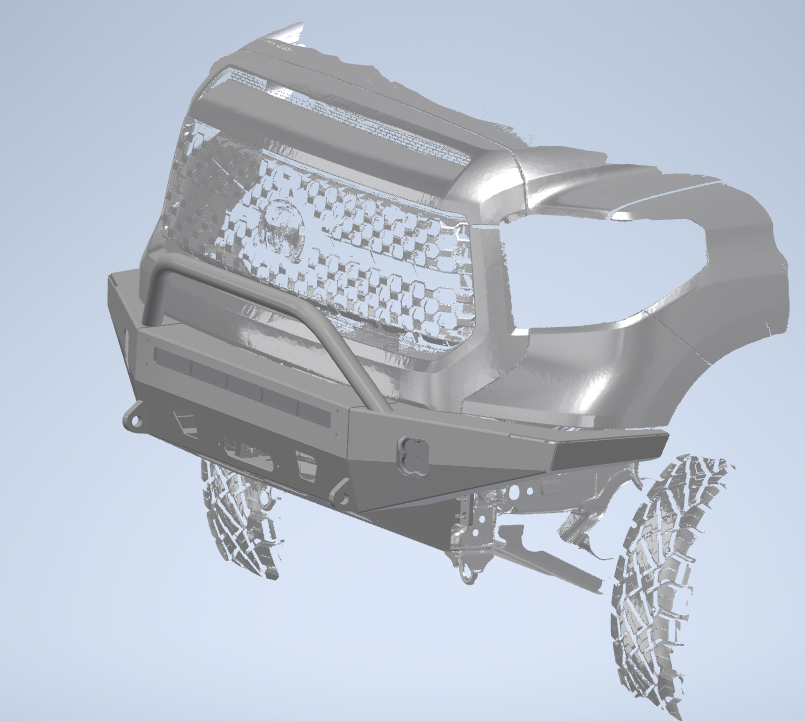

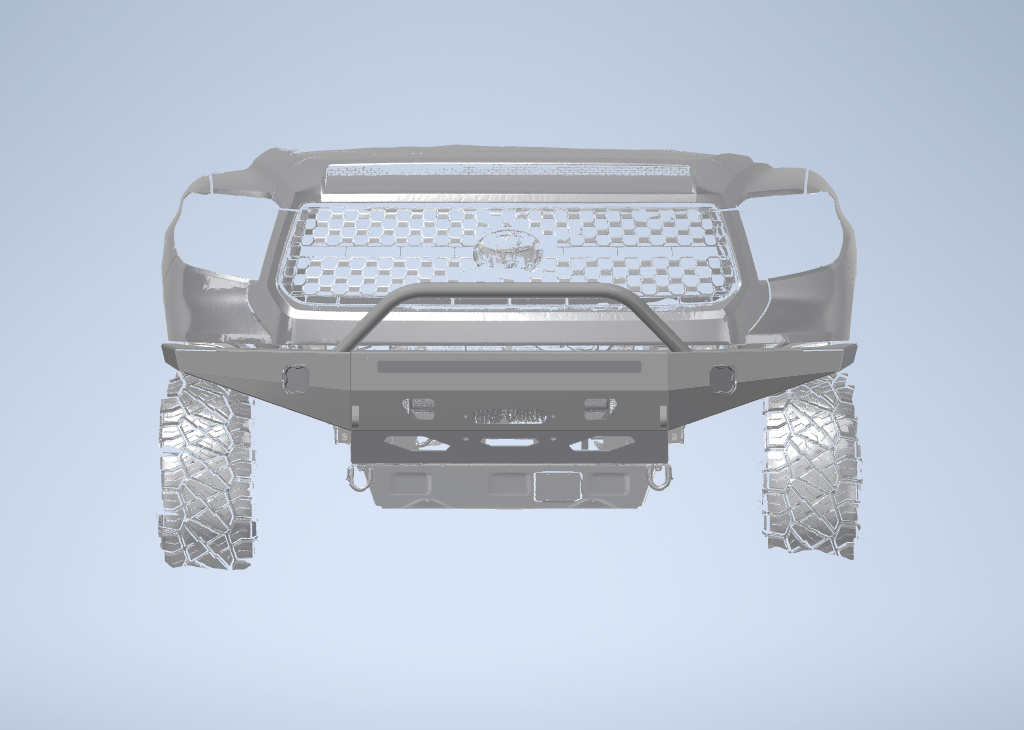

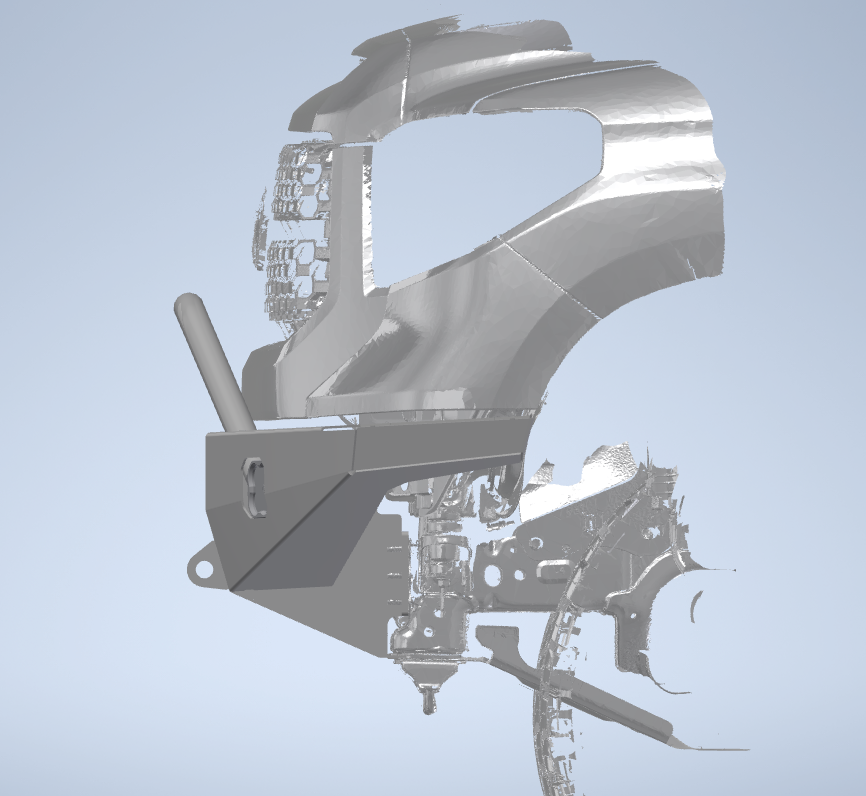

2014-2021 Tundra Front Bumper Manufacturing Drawings V2

For the guys who trust a welder more than a shipping company.

If you’ve ever looked at a $2,000 bumper and thought, “I can build that,” now you can.

This digital CAD package allows you to have the bumper CNC cut locally and welded yourself—typically for around $500 or less in ready-to-weld material when outsourced, or substantially less if you have access to your own fabrication equipment.

• No massive freight bill hidden in the final price
• No damaged pallet showing up at your door
• No 6–12 week lead times

Just production-ready fabrication files built for real-world fabrication.

V2 Design Updates

The latest revision improves both strength and fabrication efficiency:

• Improved transition from bumper to skid plate
• Additional lower crossmember mounting points for increased rigidity
• Increased winch clearance
• Compatible with Diode Dynamics SS3 pods
• Fits 30" single-row light bars
• Additional bends in bent version reduce welding time and improve fit-up

Designed for Fabrication

This bumper was designed to go together cleanly and accurately.

• Engineered using professional CAD workflows
• Built and test-fit on real trucks
• Tab-and-slot construction for precise alignment
• Designed for efficient tack-up and assembly

The goal was simple: minimize unnecessary fabrication frustration while maintaining strength and clean fitment.

Fabrication Options

No press brake? No problem.

The flat-fabrication version was specifically redesigned to work well without complex equipment and performs well in 1/8" AR400 for an excellent strength-to-weight ratio.

Options include:

• Flat fabrication version
• Bent version for shops with press brake access (36"+ brake recommended)
• Optional laser-cut 3/4" shackle mounts available separately

Compatible with steel, stainless, or aluminum depending on your build goals.

Built for Real Use

This is not thin cosmetic sheet metal pretending to be off-road armor.

• 10ga structural components
• 3/8" frame mounts
• 3/4" through-mounted recovery points
• Approximate finished weight: 85 lbs

Designed to balance strength, recovery capability, and reasonable weight.

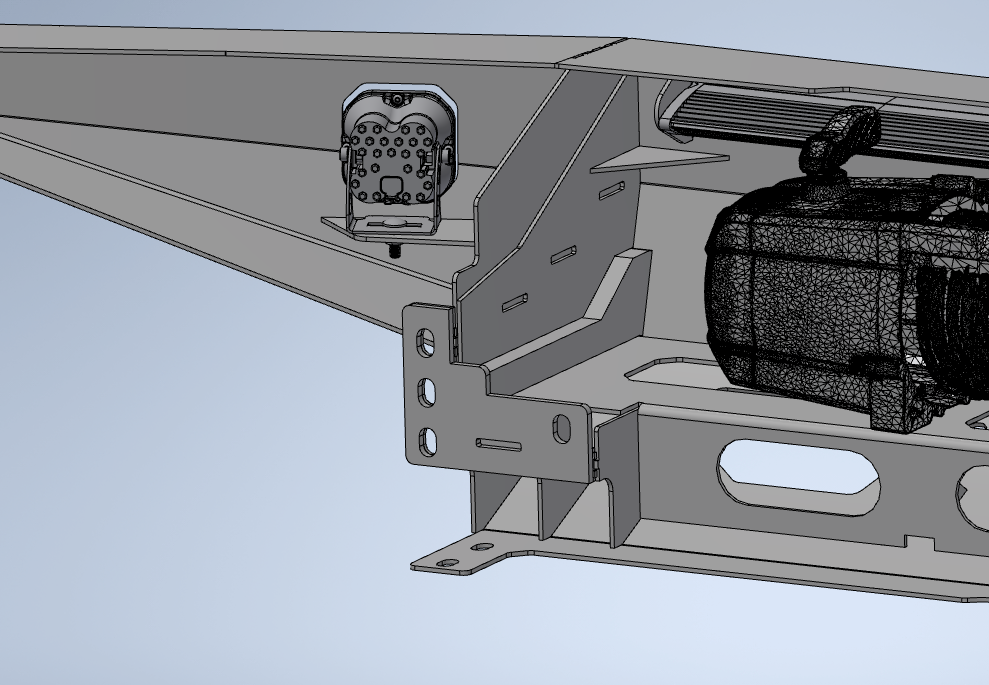

Winch & Lighting Compatibility

Compatible with:

• Badland 12K winches
• Warn VR EVO series
• Baja Designs S2
• Diode Dynamics SSC2
• Similar compact lighting systems

Depending on winch size, minor power steering cooler adjustment or relocation may be required.

Builder-Friendly Details

• Slotted mounts support up to 1/2" body lift
• Parking sensor compatible: Drill the holes and you’re in business
• Laser cutting recommended for best tab-and-slot precision and reduced prep work

Make It Your Own

One of the biggest advantages of fabrication files is flexibility.

Modify the design however you want:

• Add logos
• Add or remove lighting
• Modify venting
• Customize plate work

You control the final build.

Included Files

• DXF flat patterns
• STEP assembly file
• PDF bend drawings

Send the files directly to your local fabrication shop and start building.

If you would like an accurate fabrication estimate before purchasing, I can coordinate directly with your local shop to provide a finalized quote.

Material List

• 10ga sheet steel — approx. 18 sq ft
• 1/4" plate — approx. 0.5 sq ft
• 3/4" plate — approx. 0.5 sq ft
• 1.75" OD x .120 wall tubing — 48" (optional hoop)

All major components fit on standard CNC cutting tables.

Custom Design Work

Need changes or a completely different setup?

Custom design requests are available for:

• bumper modifications
• custom skid systems
• one-off fabrication concepts

If you can sketch it, there’s a good chance it can be designed.

Usage Terms

Files may be used to build personal or shop-use bumpers.

Please do not redistribute, share, or resell the CAD files themselves.
