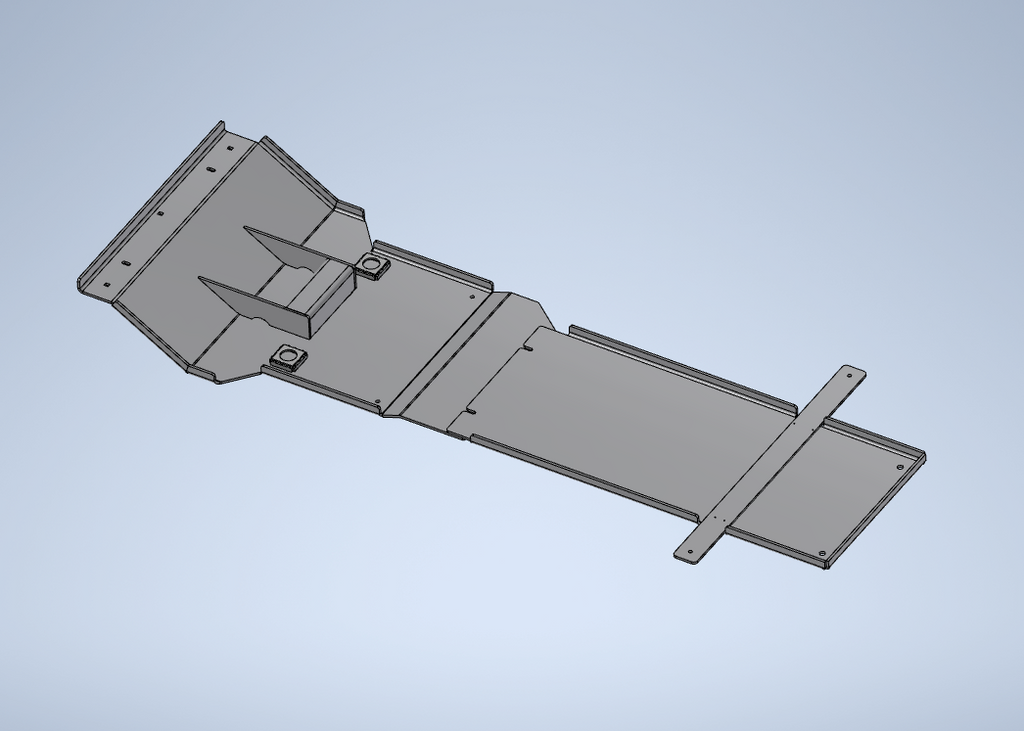

2007-2021 Tundra/Sequoia Skid Plate Manufacturing Drawings Coming Soon
$200.00
Build it. Beat it. Repeat.
Perfect for Fabricators, 4x4 Shops, or That Guy Who “Knows a Guy”
Start your own side hustle—or just save a ton of cash—by fabricating your own heavy-duty skid plates.
- Digital files ready for CNC laser or plasma cutting
- Local shop fab should run around $300 or less
- No shipping, no waiting—cut and weld when you’re ready
- You are paying $300+ in shipping fees with traditional manufacturers whether you realize it or not!
- Swap out skids every wheeling season, or install lighter ones for daily driving
Built to Take a Beating
- Available in bent or flat patterns (coming soon)—no press brake? No problem
- Designed for 3/16" steel, but aluminum or stainless works too

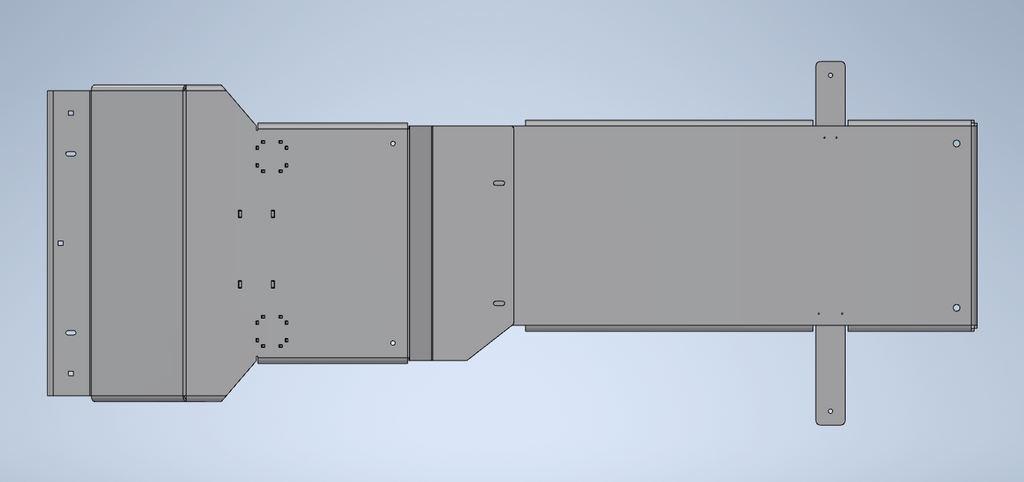

- Biggest pieces: 43"x29" and 43"x20"—fits most tables

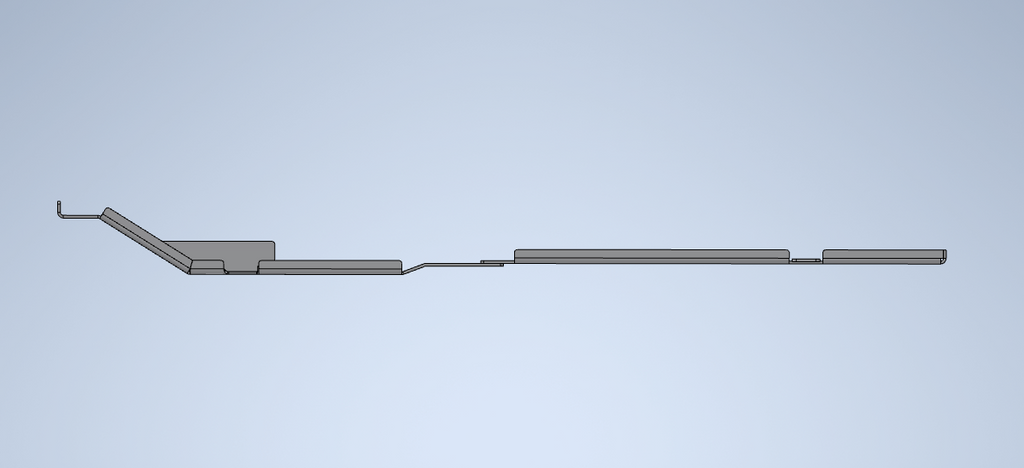

- Bent patterns require press brake at least 25" long
-
Tabs and slots make alignment idiot-proof, minimal welding required

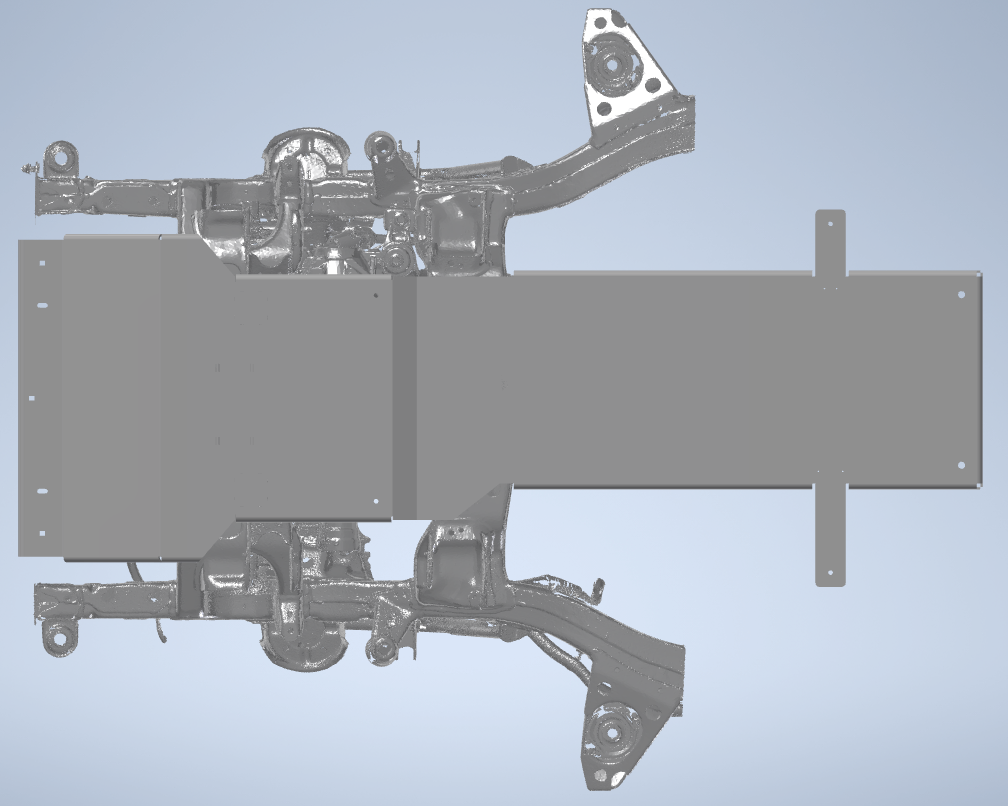

- Front skid has extra bracing to support the center against the crossmember
- Weight: 81 lbs (10ga Stl) or 108 lbs (3/16" Stl) or 50 lbs (1/4" alum)
- Has mounting provision for the factory front bumper
- Requires removal of the factory transfer case skidplate
-
Might need slightly modified for some aftermarket front bumpers
Materials You’ll Need
- Steel or aluminum sheet, 20 sq.ft.
- (2) M8-1.25x40mm bolts + flat washers (supplied by you)
- (2) 3/18-16x4" long bolts + 1" dia fender washers (supplied by you)
- (2) 3/18-16x3.5" long bolts (supplied by you)
- (4) 3/8-16 flat washers + nuts (supplied by you)
Included With Download
- PDF sheet metal bend drawings for every part
- Individual 2D DXF files for CNC laser/plasma cutting
Cut as many as you want—just don’t go selling these files.
Optional: Shop Coordination
Want a precise quote from your local fab shop? I’ll coordinate directly with them and send a finalized quote before you commit.
Also available shipped via SendCutSend:
2007-2021 Tundra and Sequoia Skid Plate Shipped via SendCutSend – Full Metal Designs
