2019-2021 5.7L Tundra Transmission Cooler Bracket

If you tow with your Tundra or have bigger tires this is a must-have upgrade. Toyota eliminated the factory transmission cooler on 2019 to 2021 Tundras, with people now experiencing temperatures up to 246 degrees when towing. These temperatures will shorten the life of your transmission.

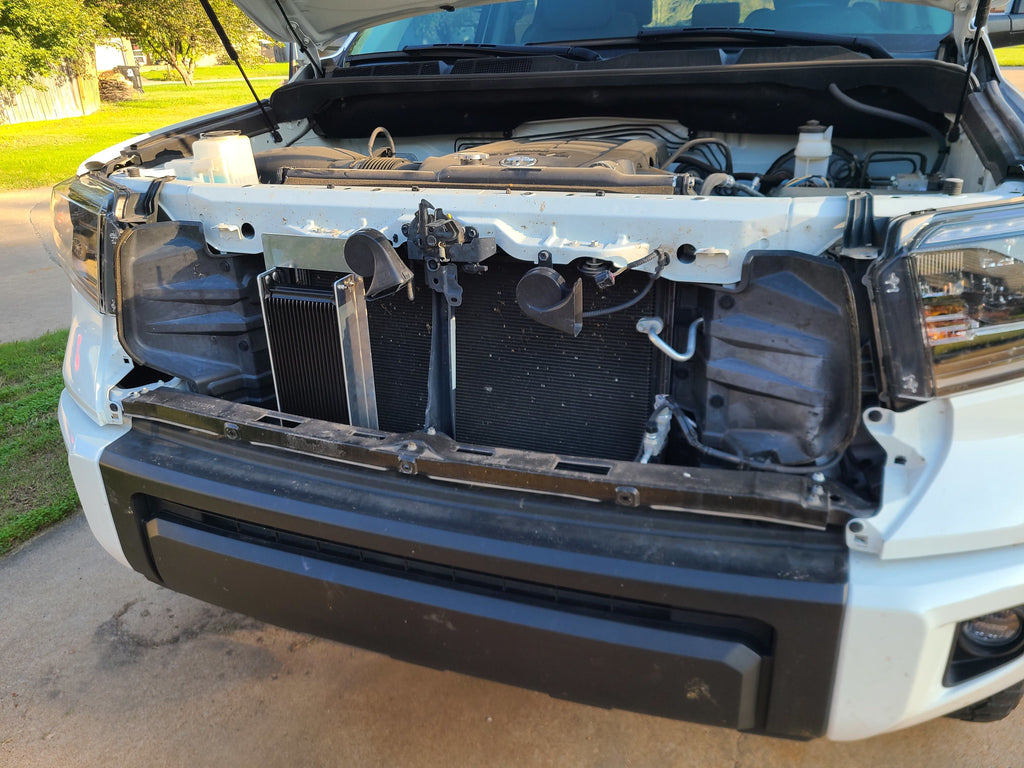

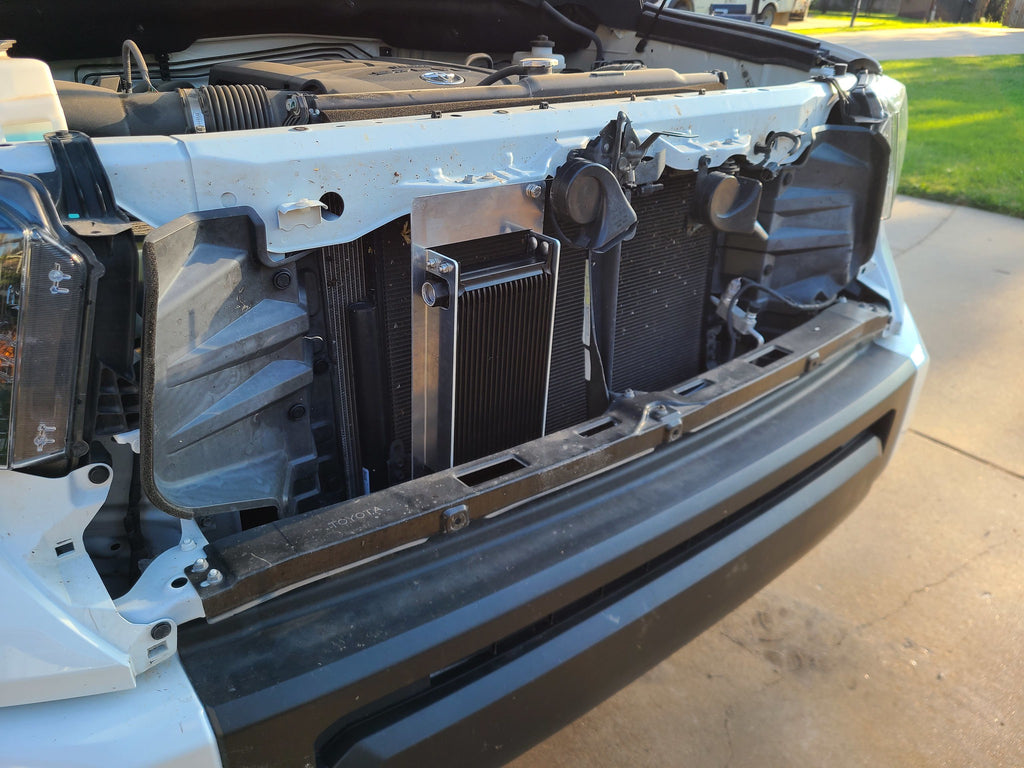

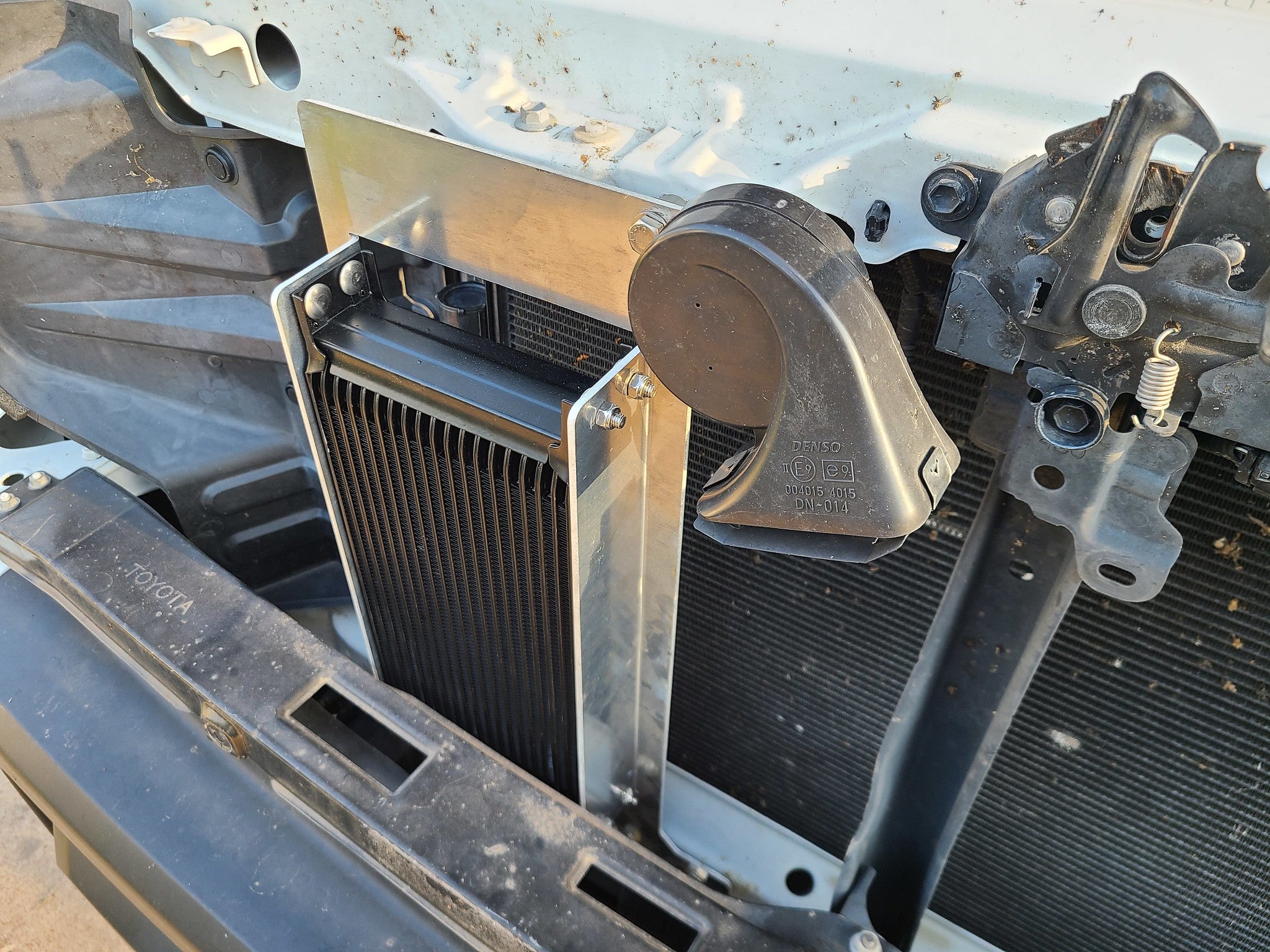

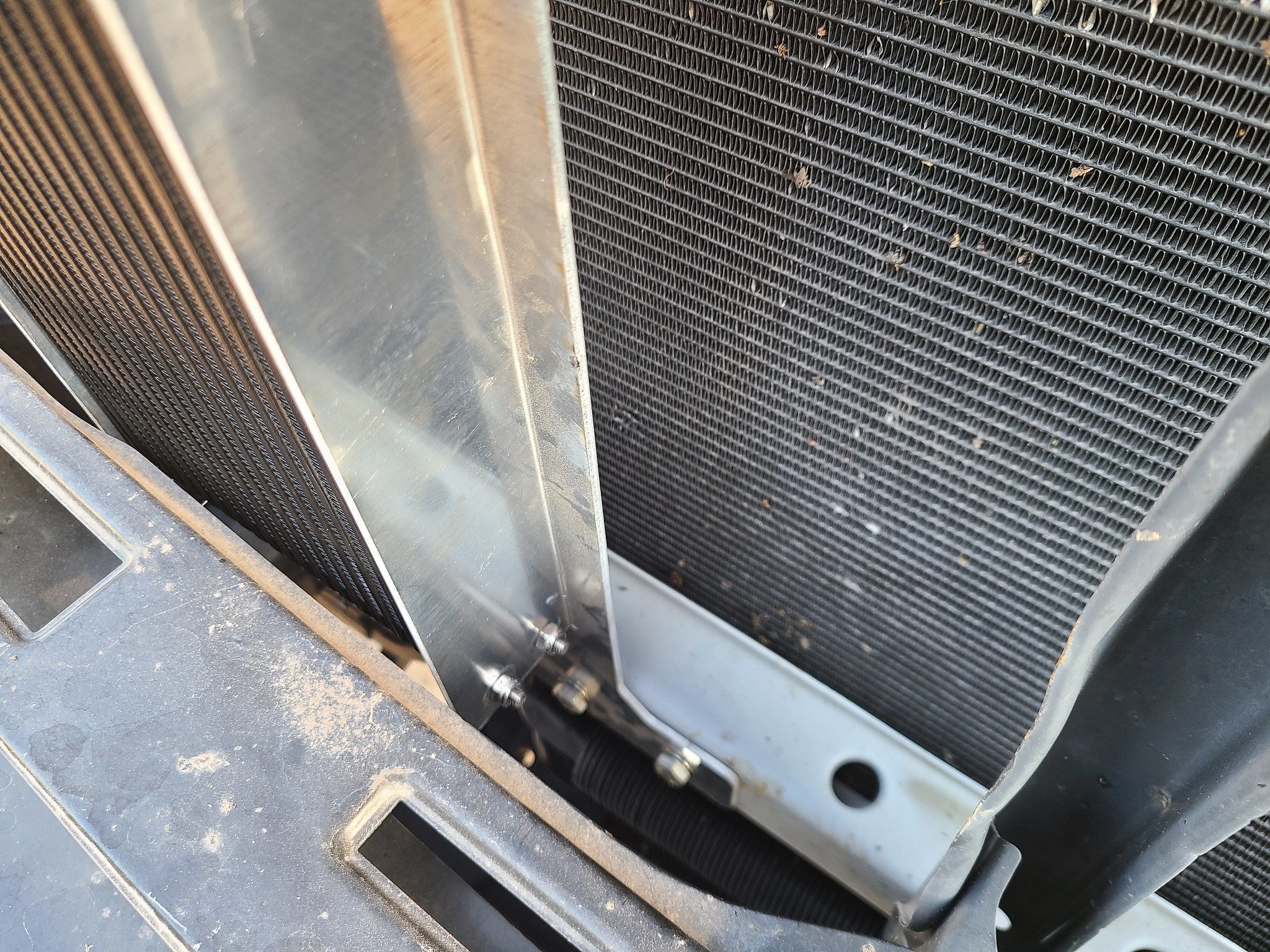

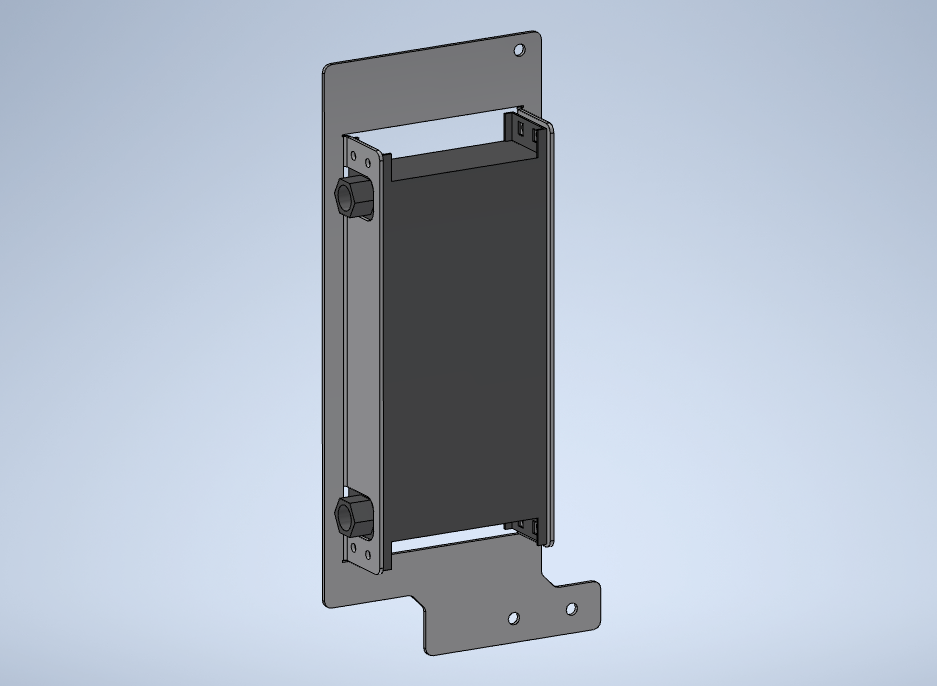

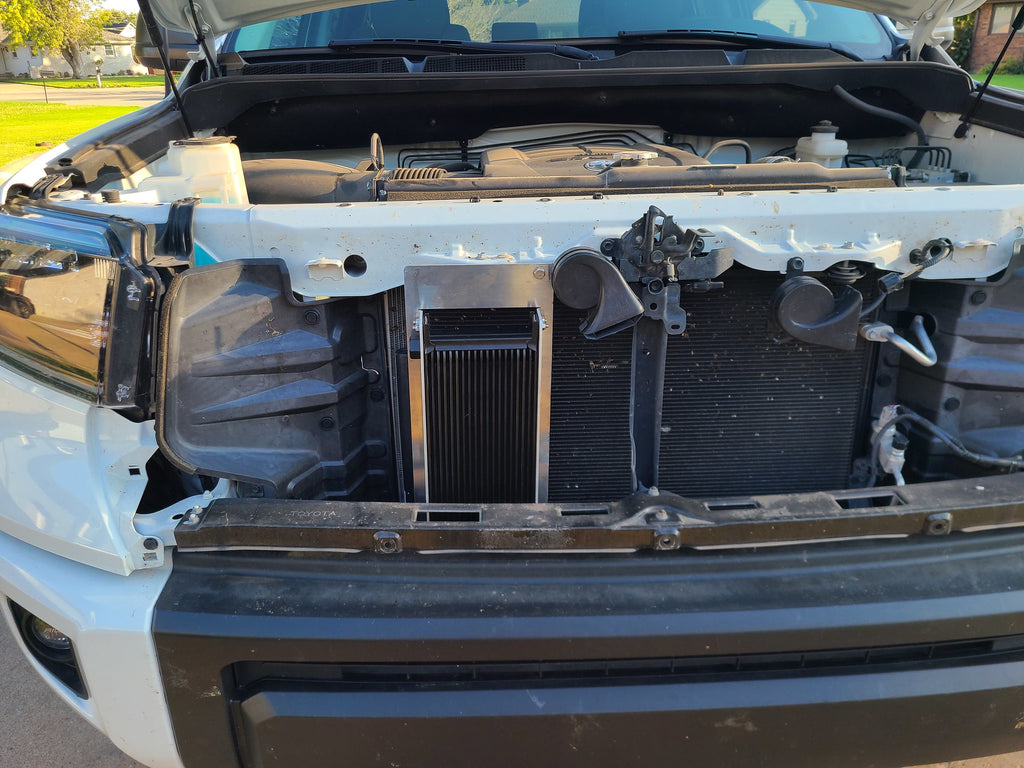

This bracket is laser cut from 1/8" aluminum and is designed to securely mount a huge Derale 19 row stack plate cooler with vibration damping just like a factory option. Bracket is a slim profile to minimize blocking the condenser and radiator behind it.

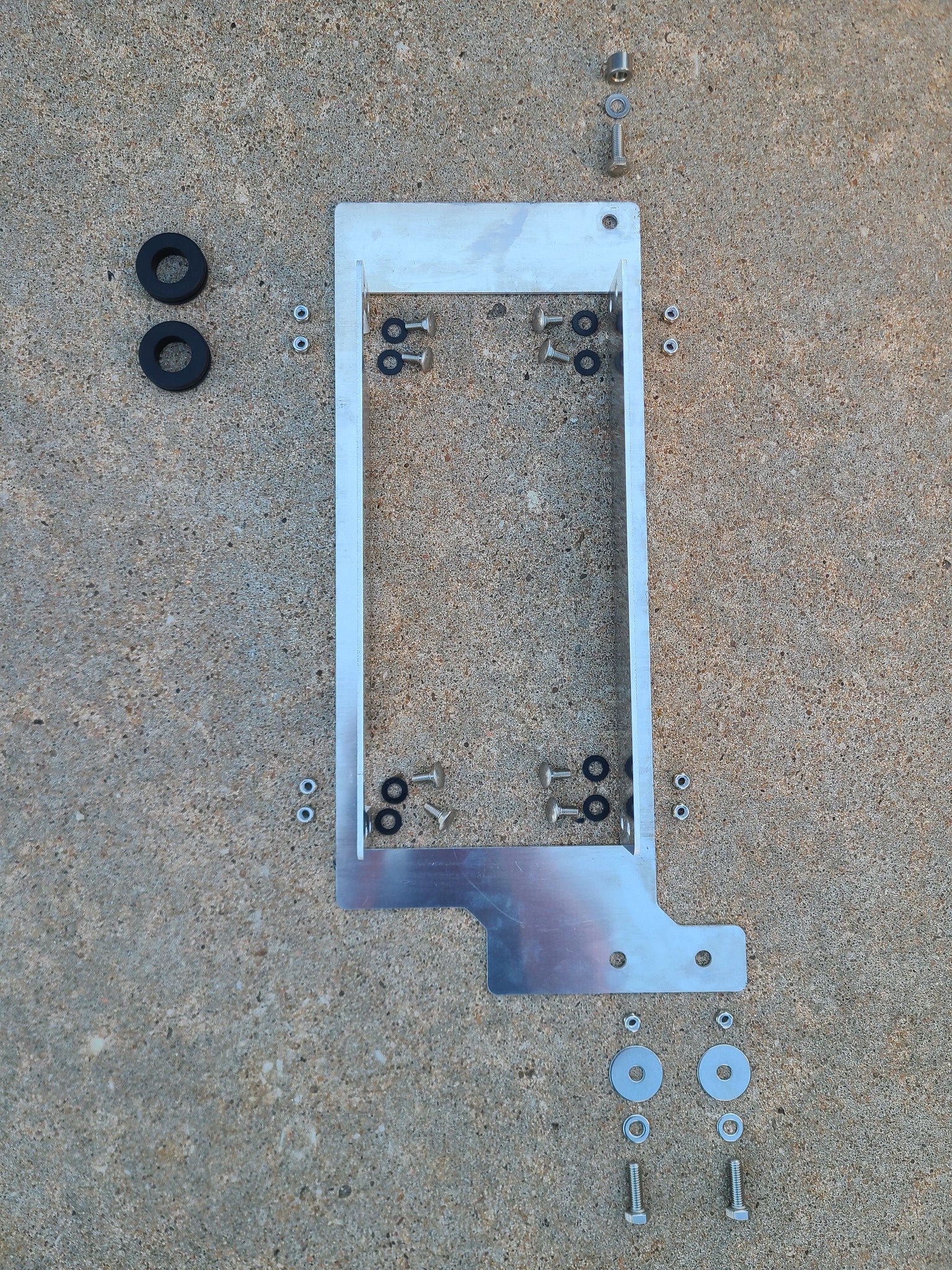

Included in kit:

Aluminum cooler mounting bracket

Stainless steel hardware to mount bracket to truck

Stainless steel hardware to mount cooler to bracket

Rubber grommets for hose routing

Needed to complete install:

Derale 19-row 10000 series cooler w/ barb fittings

3/8" inside diameter automotive hose 6'

Toyota thermostat 32970-34030

Toyota inlet hose 32941-0C030

Toyota outlet hose 32942-0C040

Toyota cooler pipe (hardline) 32907-0C020

Toyota (2) flange bolts to mount hardlines 90080-10400

Toyota hose clamps 90466-16004 or 90466-A0014

Transmission fluid

Recommended: 3/8" Magnefine filter
