2022+ Tundra Transmission Cooler Bracket

If you tow with your Tundra or have bigger tires this is a must-have upgrade. Toyota added a transmission cooler inside the radiator of the 3rd gen trucks but people still experience temperatures up to 231 degrees when towing. These temperatures will shorten the life of your transmission.

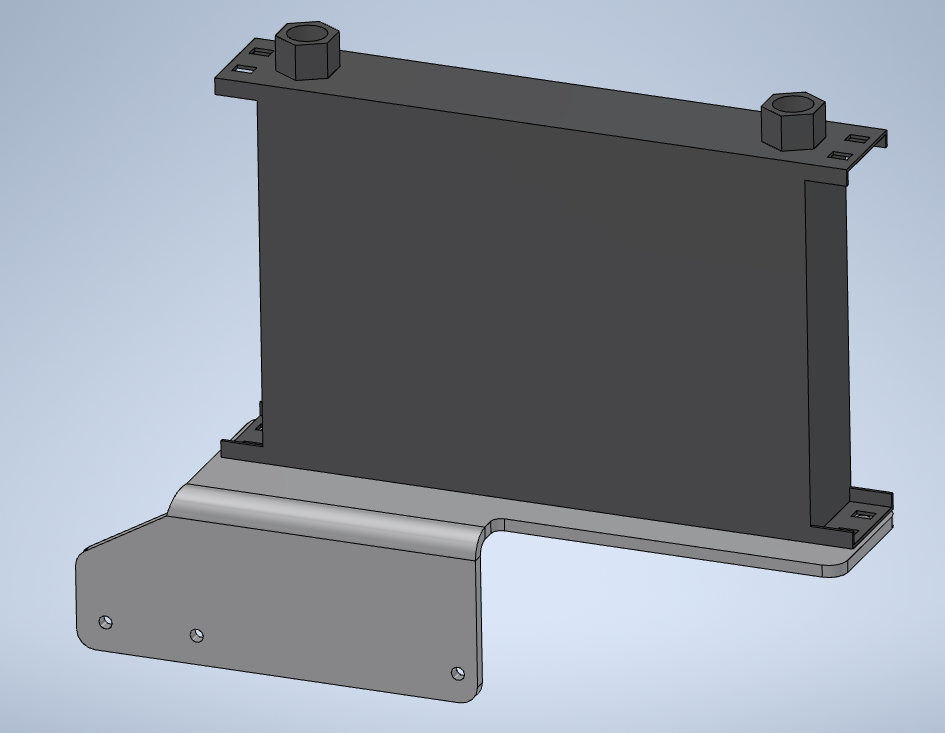

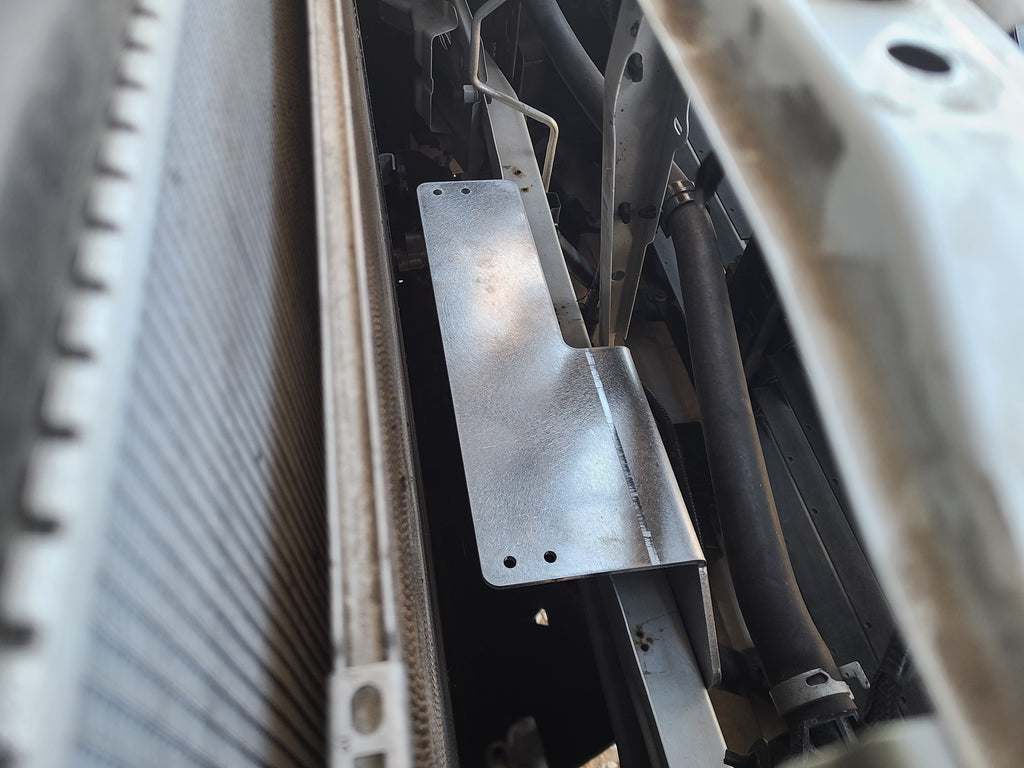

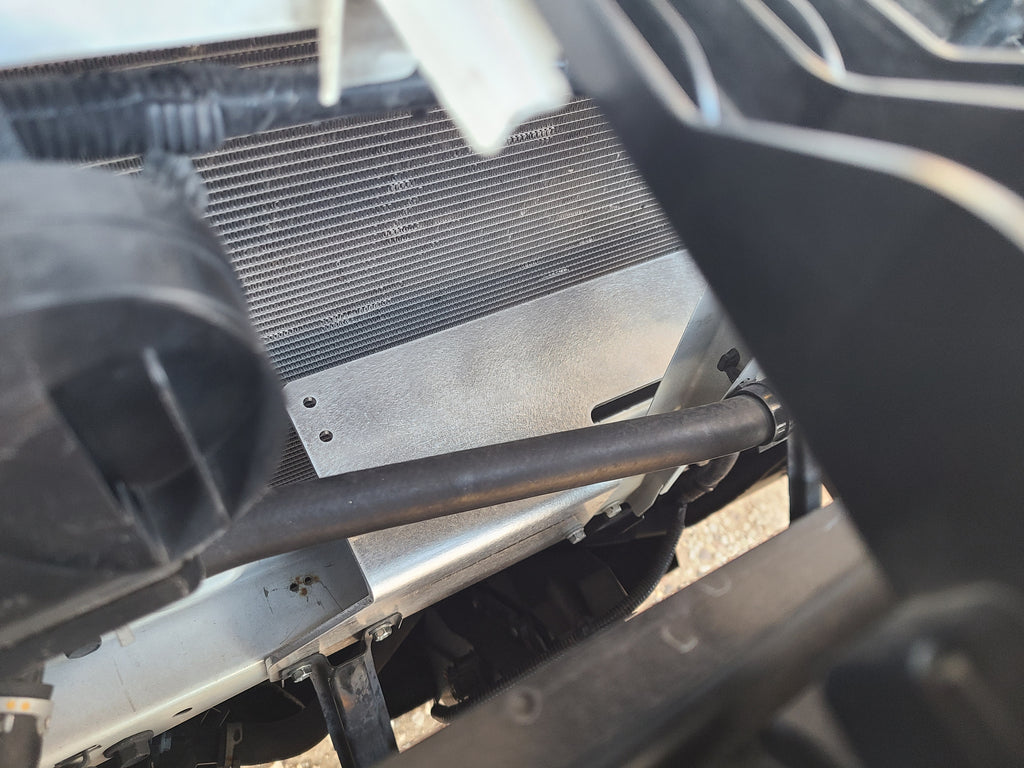

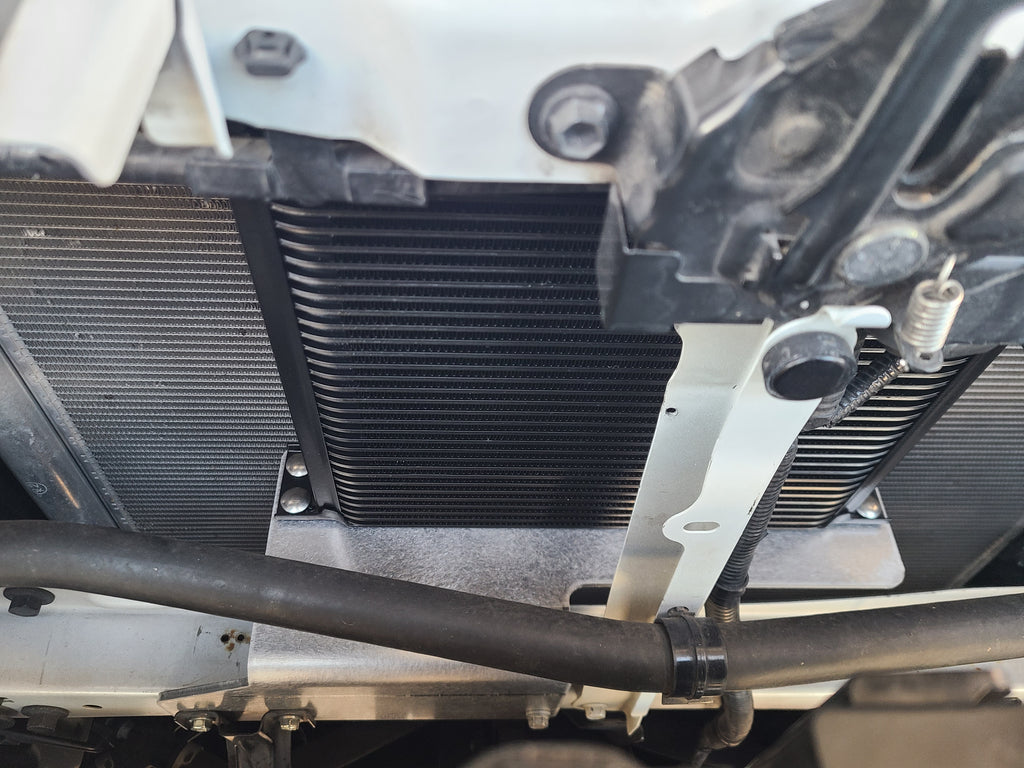

This bracket is laser cut from 3/16" aluminum and is designed to securely mount a huge Derale 10000 series or Setrab 6 series stack plate cooler with vibration damping just like a factory option. Bracket is a slim profile to minimize blocking the radiator behind it.

Does not fit i-Force Max hybrid trucks.

Included in kit:

Aluminum cooler mounting bracket

Stainless steel hardware to mount bracket to truck

Stainless steel hardware to mount cooler to bracket

Needed to complete install:

Derale 10000 series or Setrab 6 series (7 through 34 row coolers) compatible with 12.25" x 0.875" mounting pattern

3/8" inside diameter automotive hose 6'

Hose clamps and 90deg. barb fittings

Transmission fluid

Recommended: 3/8" Magnefine filter
