Weld Fixture Table Manufacturing Drawings 72x28
$250.00
Skip the Wait. Build It Yourself.
This is a digital file package that lets you get your table cut at a local shop—usually for around $600 or less. Or much less if you own a fab shop.
Why This Table Rocks
- Digital files ready for CNC laser/plasma + sheet metal bending
- Local shop fab around $600—not $1700+ like the ship-to-your-door stuff

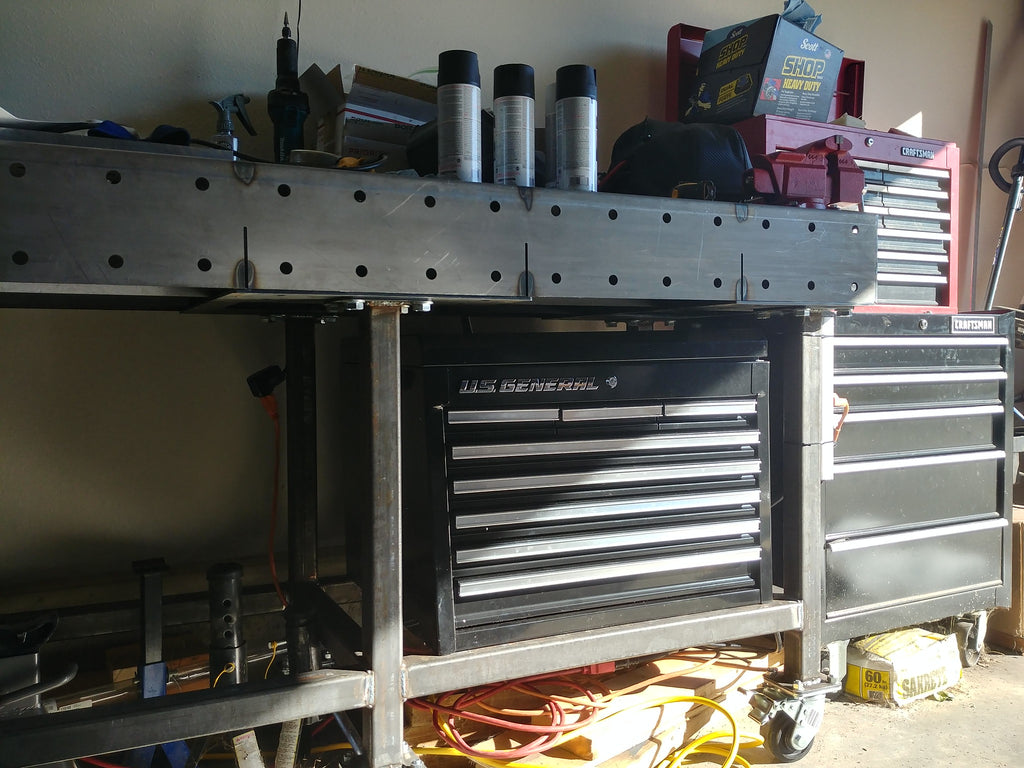

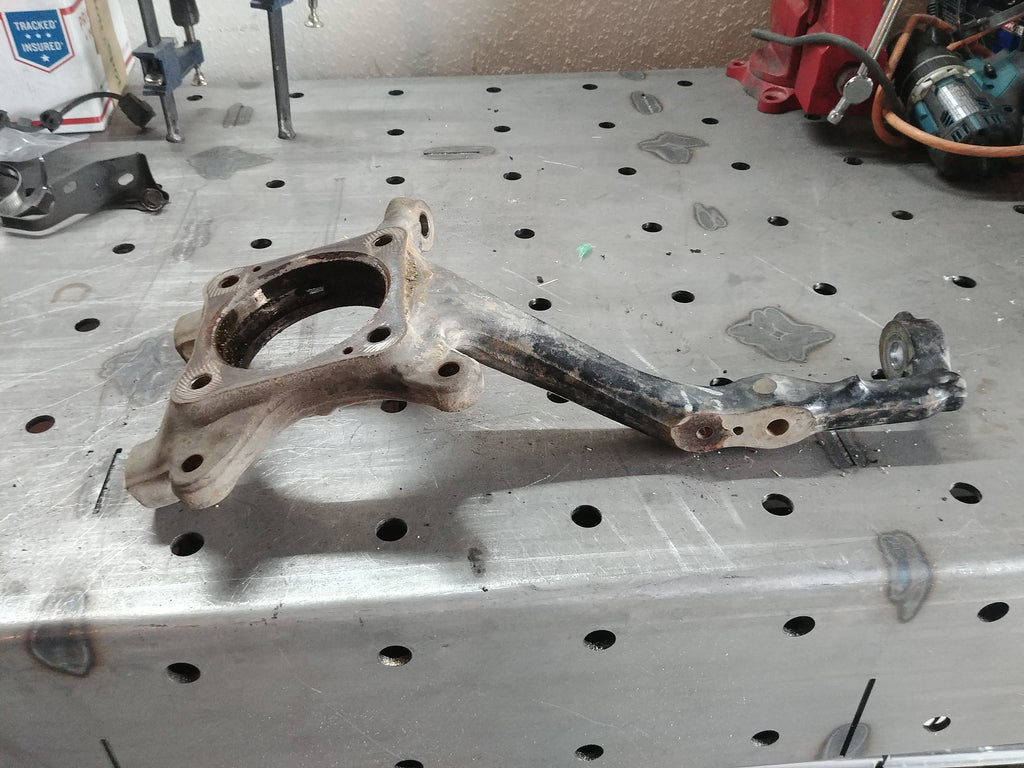

- 6' x 28" table with 16mm/.630" holes at 4" spacing—small parts won’t fall through, but still works with vices, clamps, and Harbor Freight toolboxes underneath
- Total weight: 365 lbs

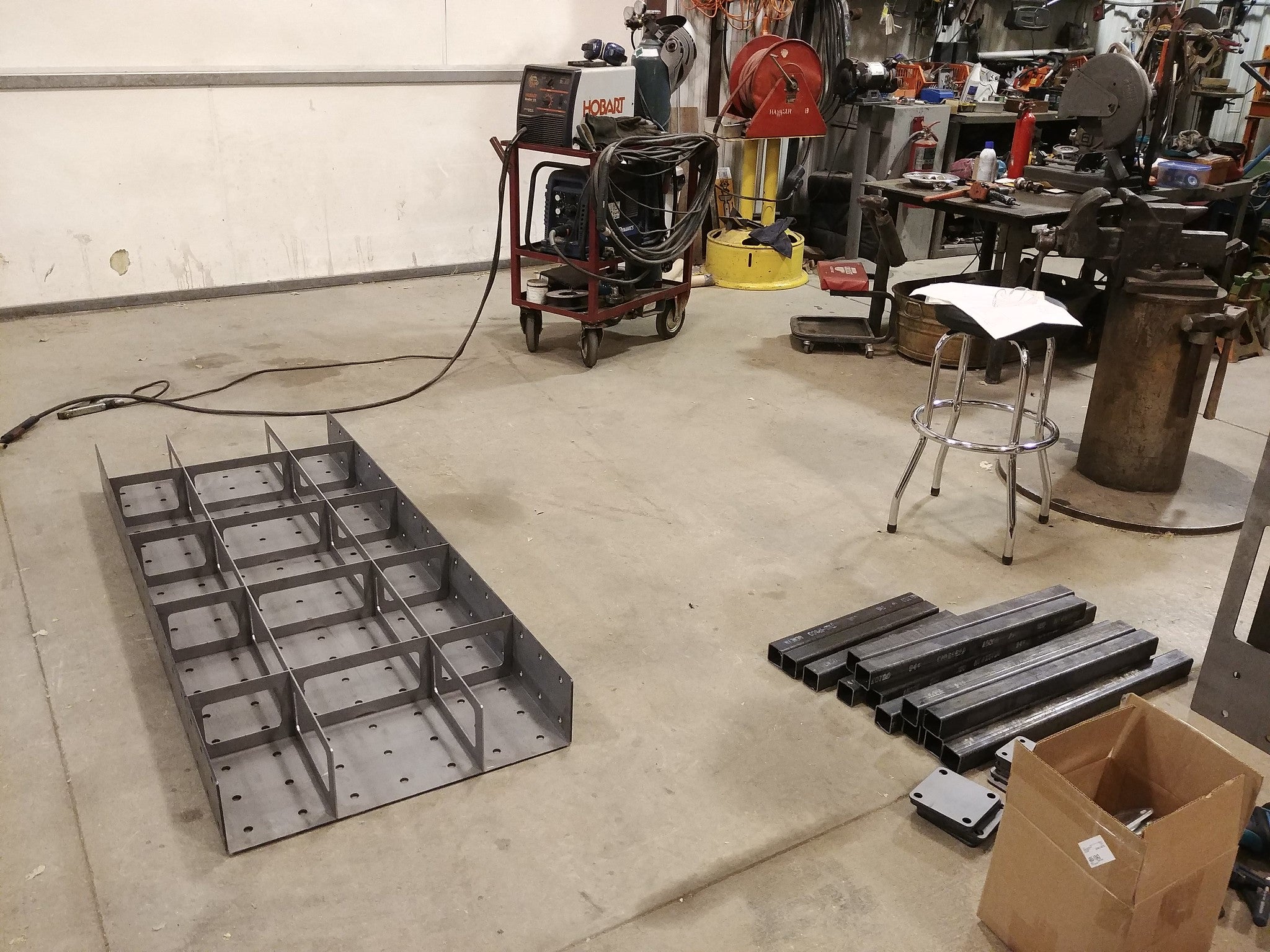

- Everything is tabbed for perfect alignment—no guessing, no cussing

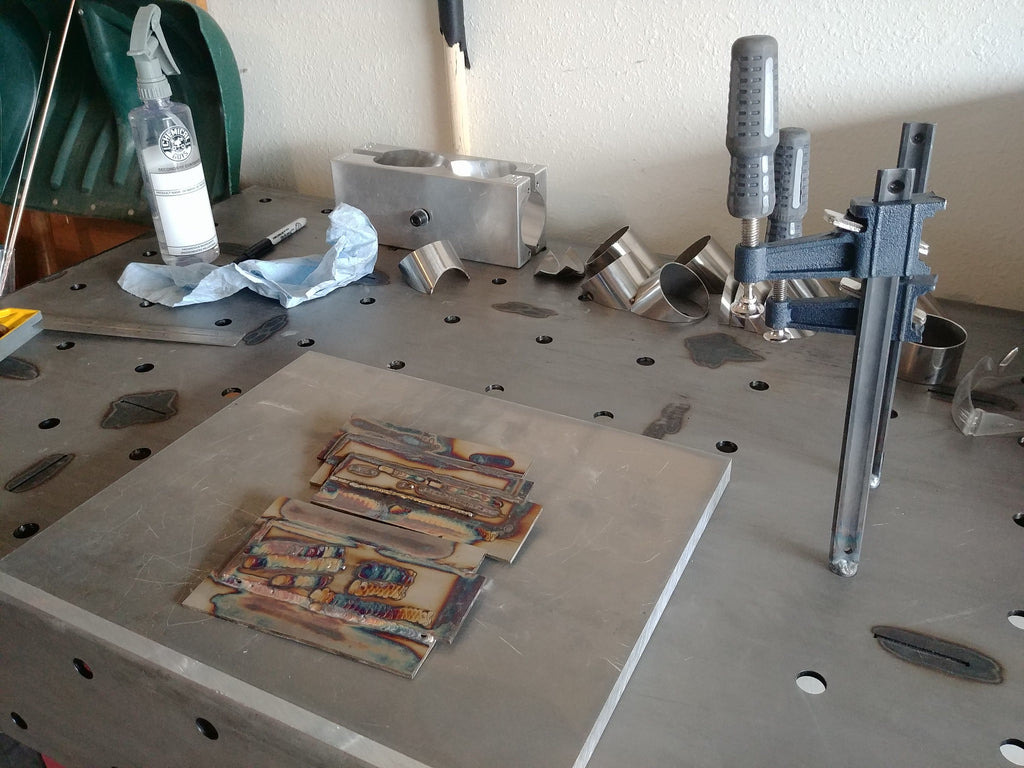

- Modify the files for custom setups: remove holes on one side for mechanic work, bolt on aluminum for heat absorption, or whatever your shop brain dreams up
Built Like I Use It

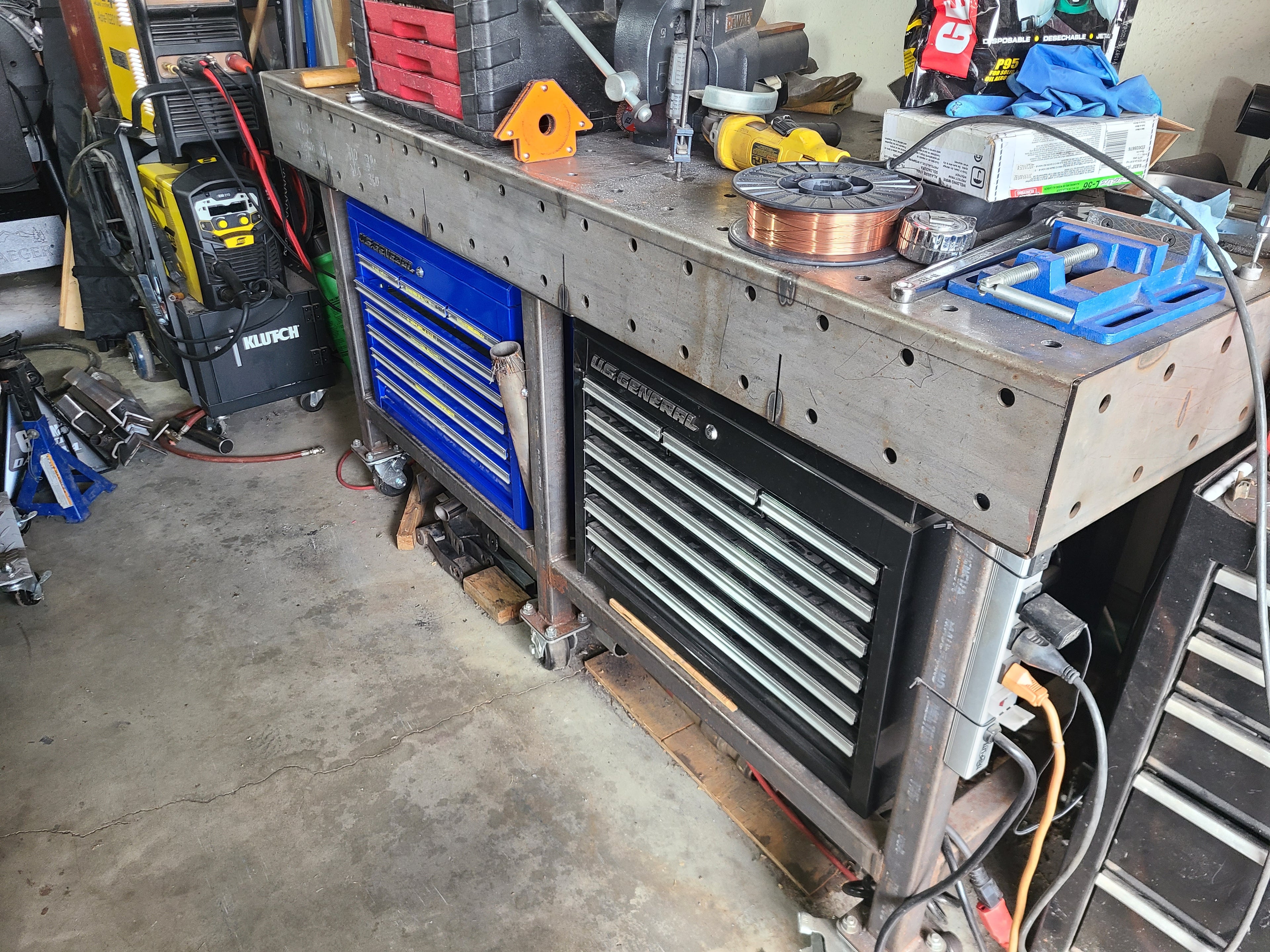

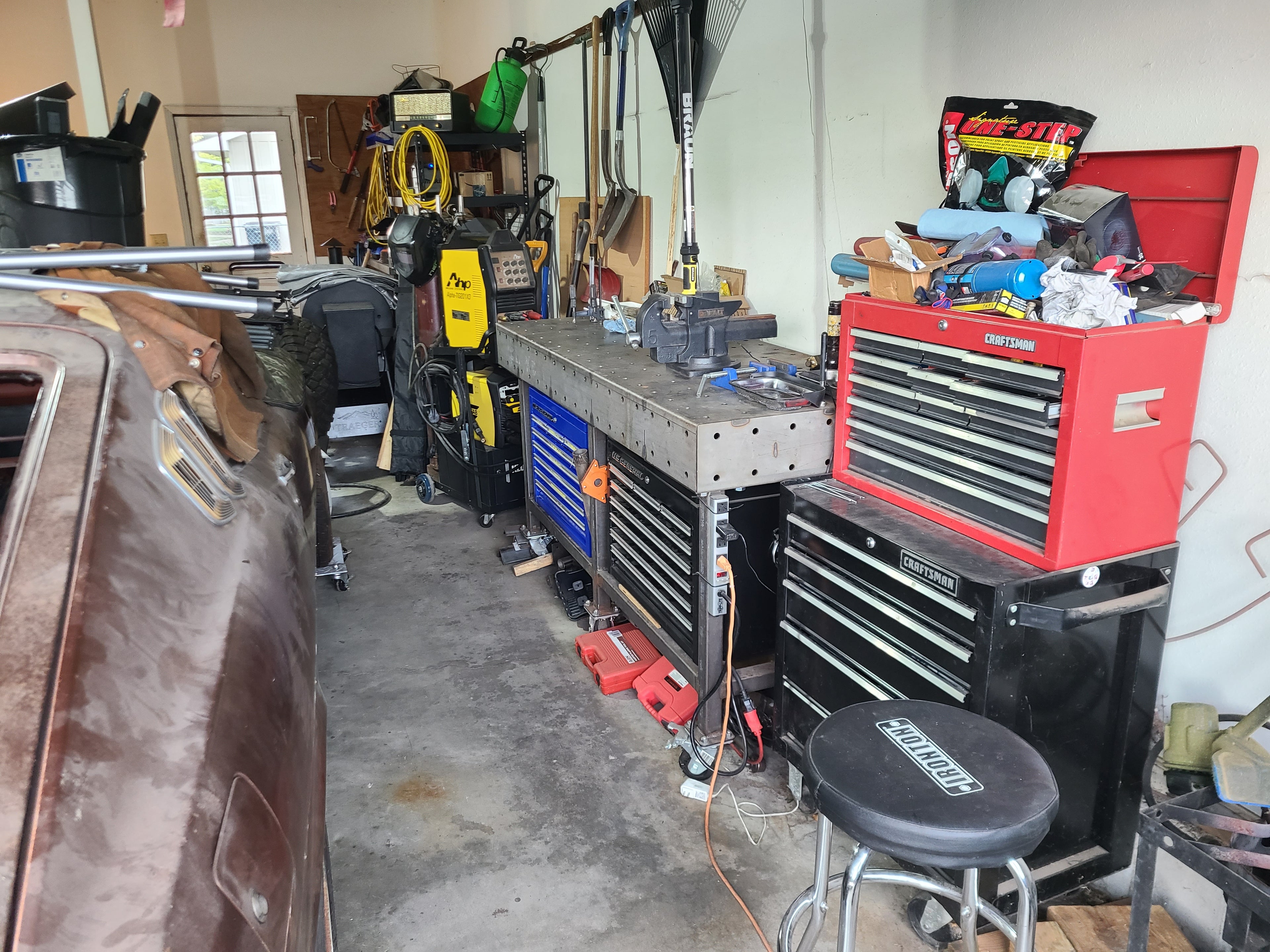

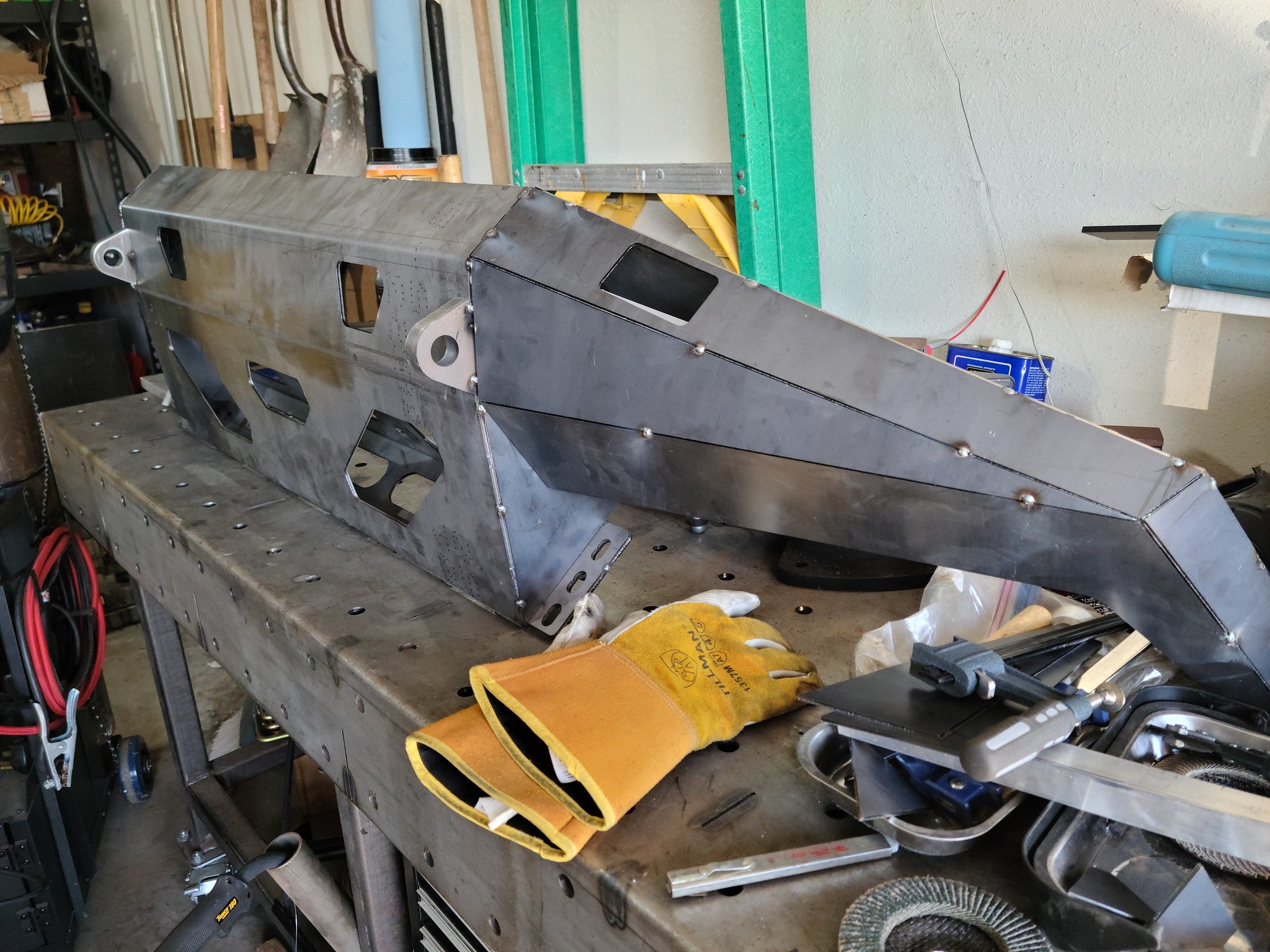

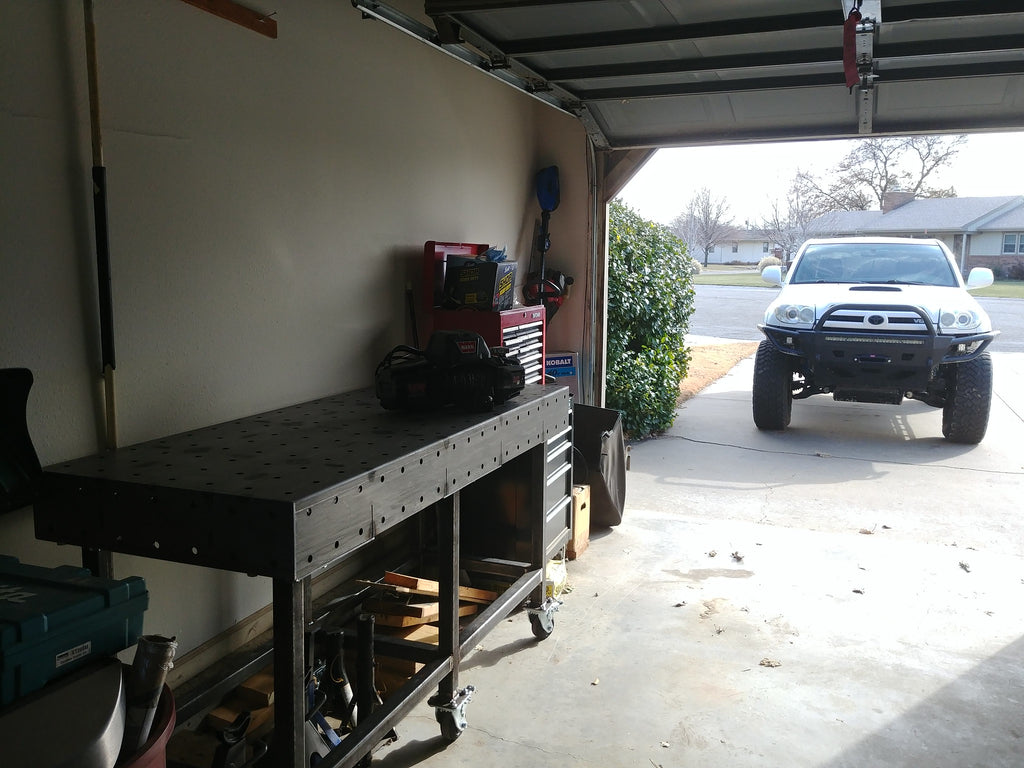

This is literally the same table I’ve been welding bumpers on in my garage for 5 years. Sturdy, reliable, and zero surprises.
Materials You’ll Need
- 7 gauge steel sheet, 34 sq.ft.
- 12 gauge steel sheet, 12 sq.ft.
- 2" square .120" wall tube, 28 ft
Included With Download

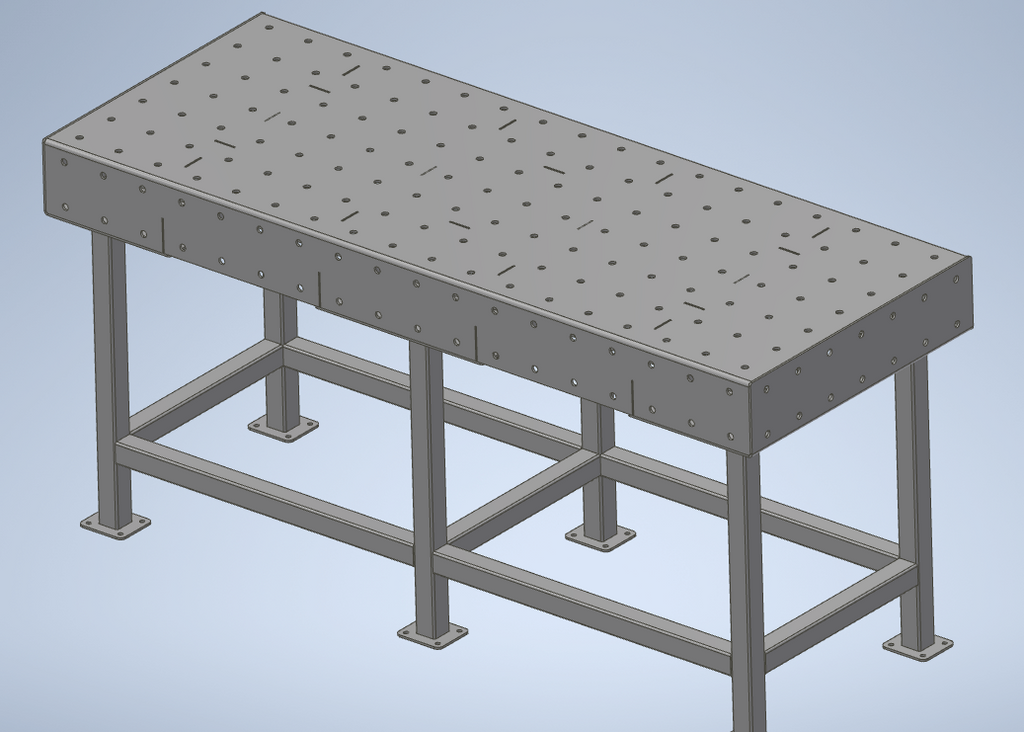

- PDF + DWG sheet metal bend drawings
- Individual 2D DXF files for CNC laser/plasma cutting
Cut as many as you want—just don’t sell or redistribute these files.
Needed to Finish
- (6) 4" caster wheels with 4"x3" bolt pattern + hardware (Cart-Smart works great)
- (24) 1/2" or M14 bolts + nuts
Optional: Shop Coordination
Want a precise fab quote before committing? I’ll coordinate directly with your local shop and send a finalized number.
